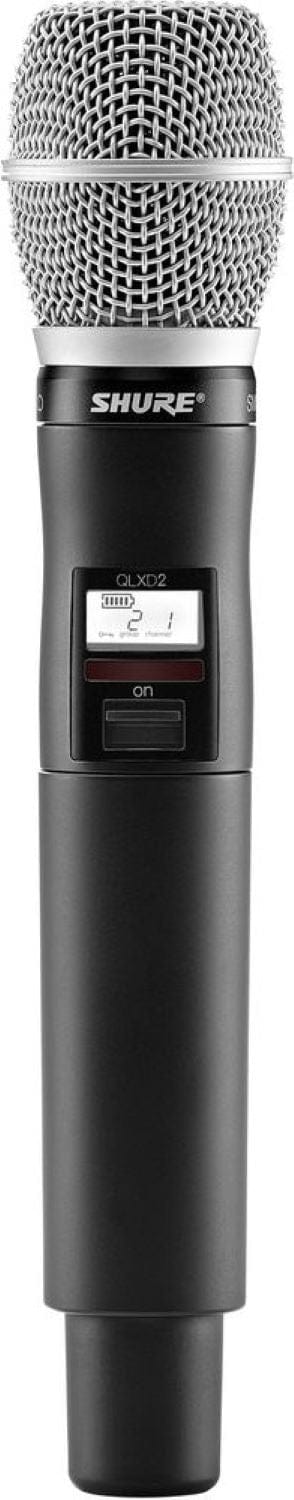

Shure QLXD2/SM86 Handheld Transmitter: Clear Sound, Reliable Wireless
The Shure QLXD2/SM86 is a digital handheld wireless microphone transmitter that delivers crystal-clear sound. It's perfect for live performances, presentations, and more. With an SM86 cardioid condenser capsule, it offers tailored frequency response for vocals. The cardioid polar pattern isolates the main sound source, minimizing background noise.
Features:
- • Compatible with QLX-D receivers for seamless connection
- • SM86 cardioid condenser mic capsule for outstanding vocal clarity
- • 1760 selectable frequencies for interference-free use
Specifications:
- RF Frequency Band: J50A (572 to 608 MHz -614 to 616 MHz)
- RF Bandwidth: 44 MHz
- Frequency Step Size: 25 kHz
- RF Channel Scanning: Auto-Scan
- Max Operating Range: 330' / 100.6 m
- Sample Rate/Resolution: 48 kHz / 24-Bit
- Latency: < 2.9 ms
- Encryption: AES 256
- Modulation: Proprietary
- Transmitter:
- Transmitter Type: Handheld
- RF Output Power: 1 / 10 mW
- Audio I/O: No
- Gain Range: 0 to 21 dB (3 dB Steps)
- Frequency Response: 30 Hz to 20 kHz
- Sync Method: IR
- Antenna: 1x 1/4 Wave
- Power Requirements: Battery
- Battery Type:
- 2x AA (Included)
- 1x Shure SB900A (Not Included, Replaceable)
- Approx. Battery Life: 9 Hours (Alkaline)
- Display & Indicators: 1x Backlit LCD (Channel, Group, RF Output Power)
- Housing: Aluminum
- Dimensions: 2 x 10.1' / 51 x 256 mm
- Weight: 12.2 oz / 347 g (without Batteries)
- Microphone:
- Microphone Type: Handheld Capsule
- Sound Field: Mono
- Capsule: Condenser
- Polar Pattern: Cardioid
- Frequency Range: 50 Hz to 20 kHz
- Maximum SPL: 147 dB SPL
- Sensitivity: -54.5 dBV/Pa
- Dynamic Range: 124 dB
This Shure QLXD2/SM86 handheld transmitter is a great choice for performers, presenters, and anyone needing a reliable wireless microphone. It's easy to use and delivers clear sound. With its aluminum housing, it's durable. The dimensions are 2 x 10.1' / 51 x 256 mm and it weighs 12.2 oz / 347 g (without batteries). Runs on 2x AA batteries (included) or 1x Shure SB900A (not included, replaceable) with an approximate 9-hour battery life (alkaline).
