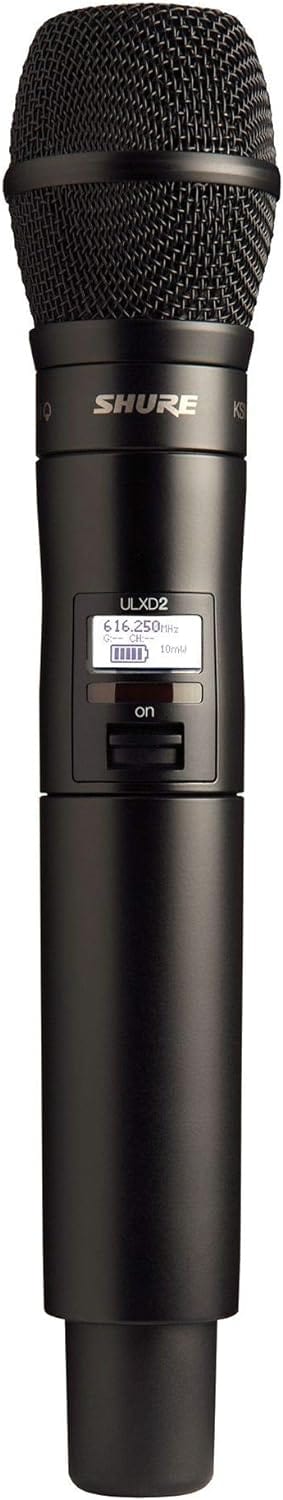

Shure ULXD2/KSM9 Digital Handheld Transmitter - Captivating Sound for Live Performances
The Shure ULXD2/KSM9 is a digital handheld wireless microphone transmitter that pairs seamlessly with ULX-D receivers. It's a must-have for musicians, presenters, and performers seeking top-notch sound quality for live events. Here's why:
Key Features:
- • Superior Sound: Equipped with a dual-diaphragm KSM9 condenser capsule, it captures every sonic detail for precise vocal reproduction.
- • Versatile Design: Features a supercardioid/cardioid polar pattern and an interchangeable capsule design.
- • Advanced Technology: Comes with automatic gain adjustment, secure AES-256 encryption, and networked intelligent charging.
Whether you're on stage or in the spotlight, the Shure ULXD2/KSM9 delivers exceptional audio performance.
Technical Specifications:
- RF Frequency Band: J50A (572 to 608 MHz - 614 to 616 MHz)
- RF Bandwidth: 44 MHz
- Frequency Step Size: 25 kHz
- Max Operating Range: 328.1' / 100 m
- Latency: < 2.9 ms
- Encryption: AES 256
- Modulation: Proprietary
- Transmitter:
- Transmitter Type: Handheld
- RF Output Power: 1 / 10 / 20 mW (Switchable)
- Audio I/O: No
- Muting: Off/On Switch
- Gain Range: 0 to 21 dB (3 dB Steps)
- Sync Method: IR
- Antenna: 1 x Internal Single-Band Helical
- Power Requirements: Battery
- Battery Type:
- 2 x AA (Included)
- 1 x Shure SB900A (Not Included, Replaceable)
- Approx. Battery Life:
- Med.: 11 Hours (Alkaline)
- Med.: 12 Hours (Lithium Shure SB900A)
- Display & Indicators: 1 x Backlit LCD (Battery Status, Channel, Group, Mute, RF Output Power, Sync)
- Housing: Aluminum
- Operating Temperature: 0 to 122°F / -17 to 50°C
- Storage Temperature: -20 to 165°F / -28 to 73°C
- Dimensions: 10.1 x 2' / 256 x 51 mm
- Weight: 12 oz / 340 g
- Microphone:
- Microphone Type: Handheld
- Sound Field: Mono
- Capsule: Electret Condenser
- Polar Pattern: Cardioid, Supercardioid
- Frequency Range: 50 Hz to 20 kHz
- SNR: 72 dB
- Dynamic Range:
- Hypercardioid: 130.8 dB
- Wide-Angle Cardioid: 131.3 dB
- Maximum SPL: 152 dB SPL
- Sensitivity: -51 dBV/Pa at 1 kHz
- Packaging Info:
- Package Weight: 1.575 lb
- Box Dimensions (LxWxH): 12.75 x 4.9 x 3.55'
The Shure ULXD2/KSM9 Digital Handheld Transmitter is perfect for live performances, presentations, and events. Musicians, presenters, and performers will love its superior sound quality and advanced features. With dimensions of 10.1 x 2' / 256 x 51 mm and a weight of 12 oz / 340 g, it's easy to hold and use on stage or in the spotlight.
