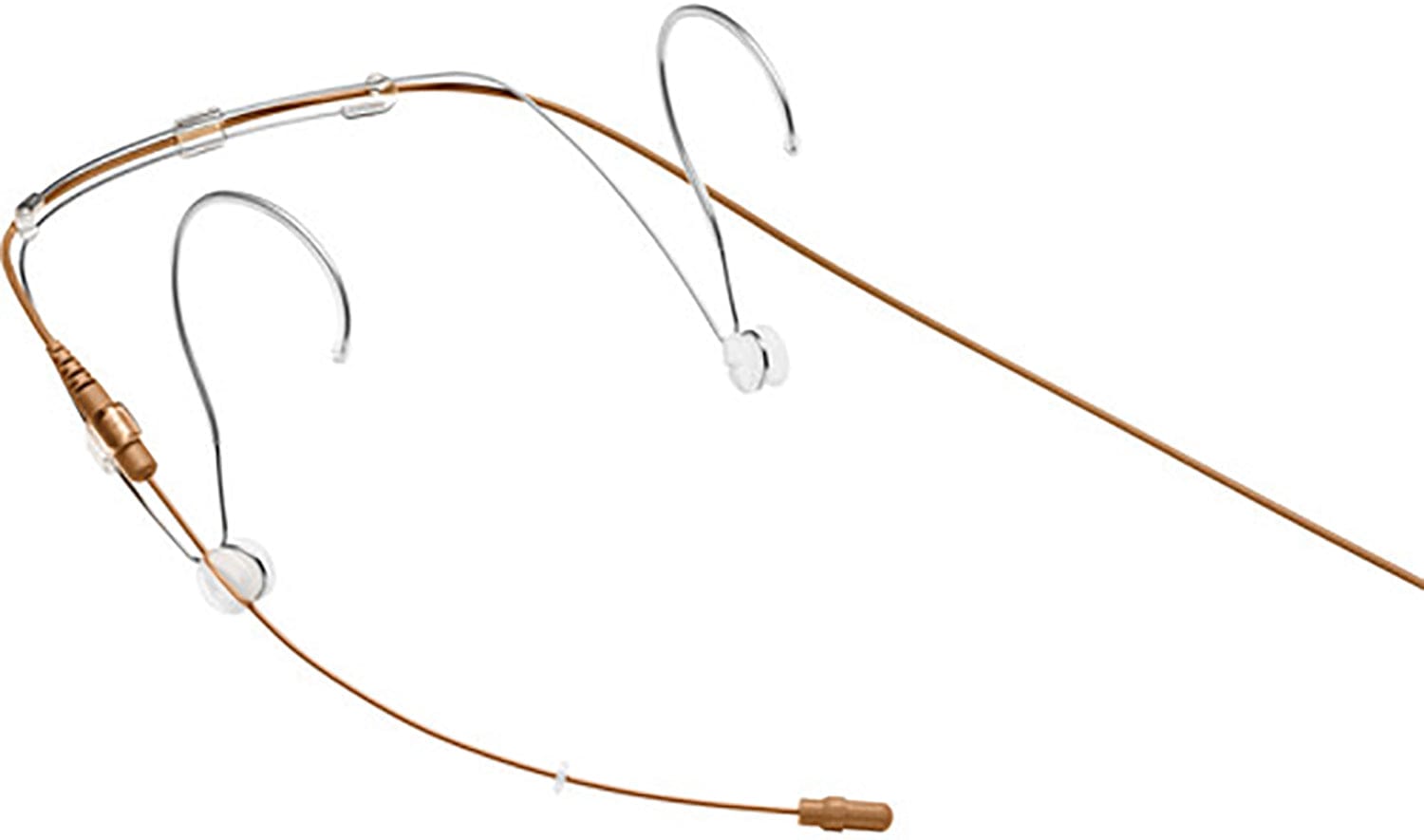

Shure DH5C/O-LM3 DuraPlex Omnidirectional Subminiature Headset Mic - LEMO3 Plug (Cocoa)
Lightweight and super comfy to wear, this DuraPlex DH5 wireless headset microphone gives a neutral, full sound that'll boost your performance, whether it's speech, music, or broadcast! Rely on it even in the toughest environments, thanks to its long-lasting Shure Plex cable and IP57 rating. Capture every moment with confidence!
Features:
- • Compact 5 mm omnidirectional design for discrete placement and better gain-before-feedback
- • IP57 dust & waterproof rated for worry-free use
- • Neutral, full sound for various applications like film, broadcast, speech, theater, and performance
- • Advanced 1.6 mm Shure Plex cable:
- • Dual redundant ground for long-lasting protection
- • Immune to memory effect and kinks
- • Can be fully painted with common theater items
- • Presence Cap for tailored frequency response, adding vocal clarity (3 - 4 dB boost near 10 kHz)
- • Available in Cocoa color
- • Two connector types available: LEMO
- • Kit includes Case, Foam Windscreen, Snap-fit Windscreen, Single Tie Clip, Sticky Mount, TQG Locking Collar (mTQG/TA4F SKUs only)
Specifications:
- Microphone Capsule: MEMS
- Polar Pattern: Omnidirectional
- Frequency Response: 20 Hz to 20 kHz
- Sensitivity: –42.5 dBV (7.5 mVRMS) @ 1 kHz
- Self-Noise: 31 dB SPL-A A-weighted, Equivalent Acoustical
- Signal-to-Noise Ratio: 63 dB
- Maximum SPL: 132.0 dB SPL 1 kHz @ 1% THD, typical
- Dynamic Range: 101.0 dB Typical
- Microphone Current Draw: 220 μA, maximum
- Bias Voltage Recommended Operating Voltage: 5 VDC
- Housing: Molded ABS
- Polarity: Positive pressure on diaphragm produces positive voltage on Pin 3 with respect to Pin 1
- Cable Diameter: 1.6 mm
- Cable Length: 66.0 in (1.67 m)
- Net Weight: 15.0 g (0.53 oz)
- Capsule Dimensions (L × D): 14.5 mm × 5.2 mm
This Shure DH5C/O-LM3 headset microphone is perfect for performers, broadcasters, and anyone needing clear audio. It's lightweight (only 15.0 g or 0.53 oz) and has a cable length of 66.0 in (1.67 m). With its 5 mm omnidirectional subminiature design, it's great for discrete placement. Use it in various scenarios like film shoots, theater performances, or live broadcasts.
