Shure BLX14R Wireless Rack-mount Instrument System - Deliver Legendary Audio Performance

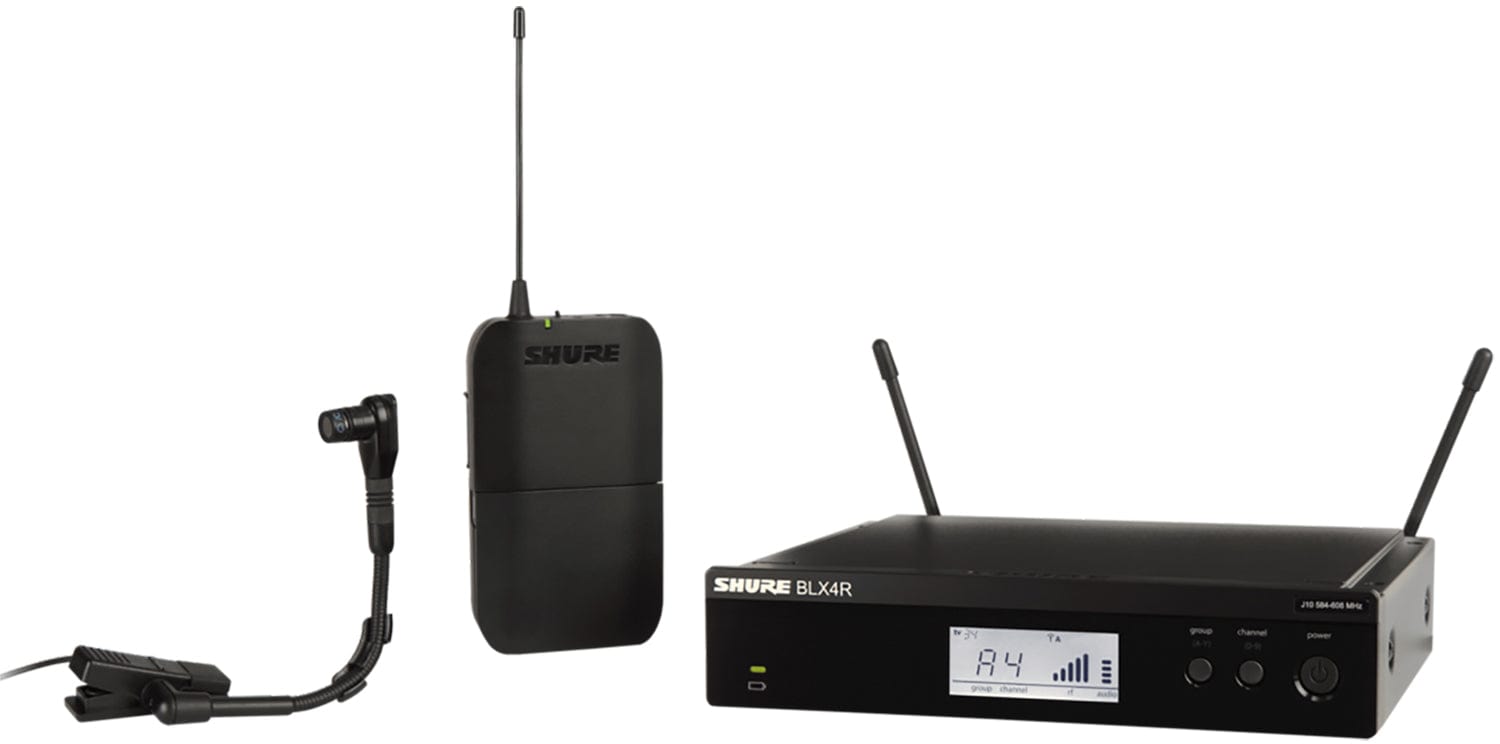

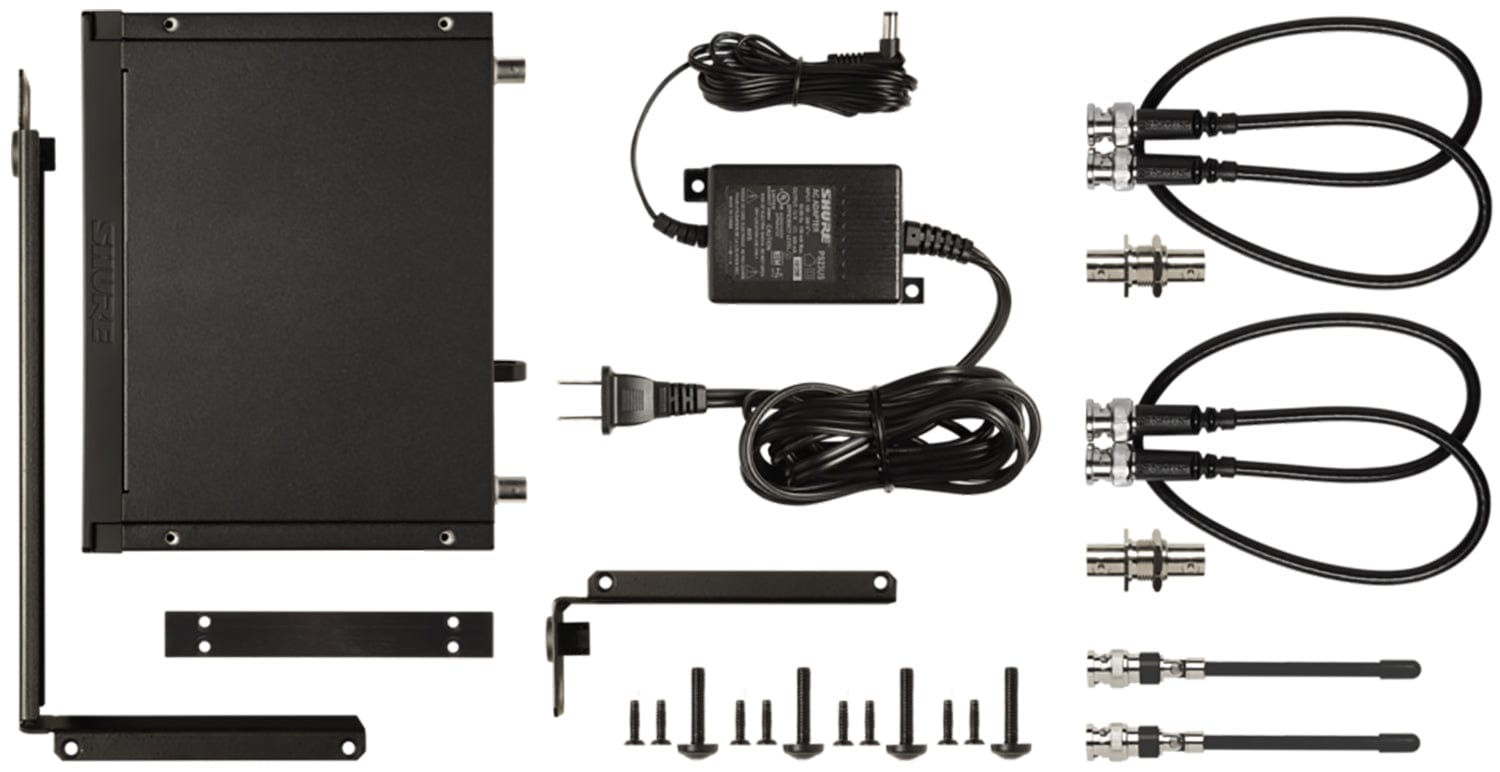

The Shure BLX14R/B98 Wireless Rack-mount Instrument System offers professional-quality sound right out of the box. It features simple setup and up to 14 hours of battery life. The system includes a BLX4R half-rack single-channel receiver, a B98H/C gooseneck instrument microphone with a BLX1 bodypack transmitter, a clip-on clamp, a power supply, 2 AA batteries, a rackmount kit, 2 1/4 wave antennas, and a user guide.
Key Features:
- • Superior Audio for confident performance
- • Reliable Signal to extend your range
- • Easy Setup to own the stage
Technical Details:
- • System: Analog UHF wireless technology, 123 RF channel frequencies, 1 bodypack transmitter, antenna diversity, J11 RF frequency band (596 - 616 MHz), 24 MHz RF bandwidth, auto-scan RF channel scanning, 300' / 91.4 m max operating range (line of sight), 12 max transmitters per band, 100 dBA dynamic range.

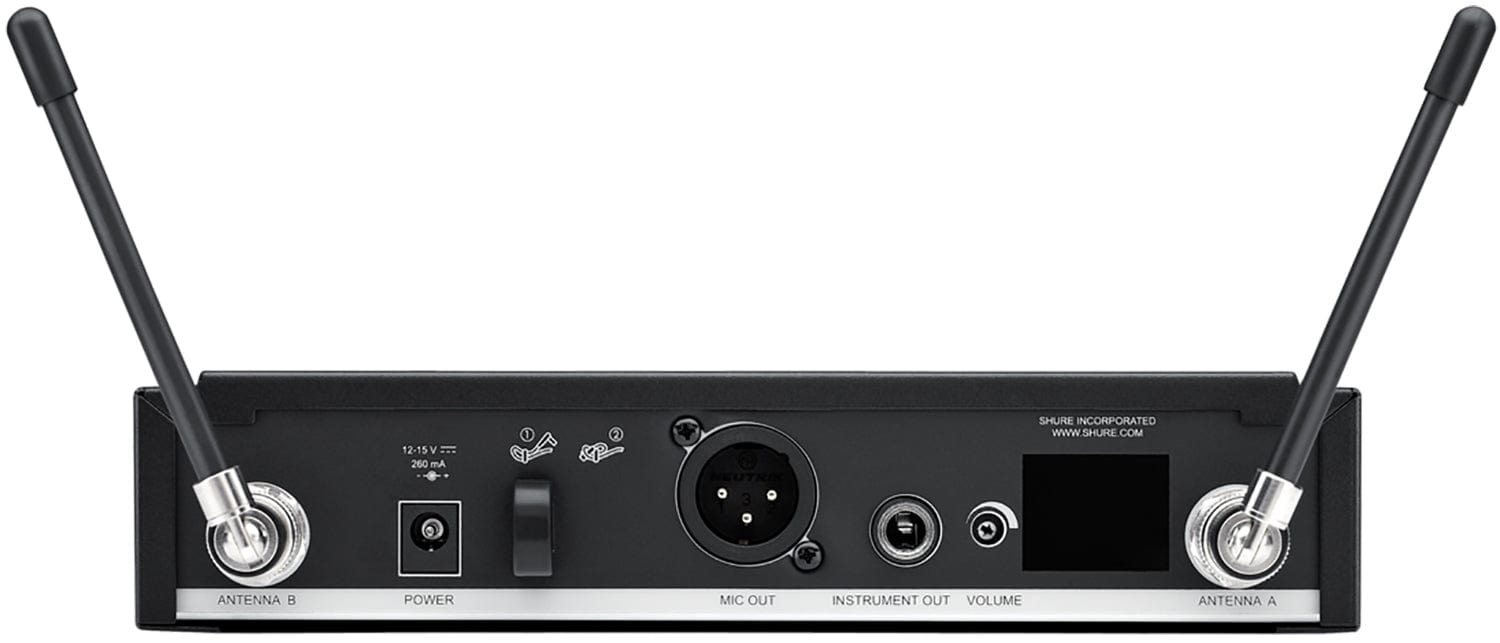

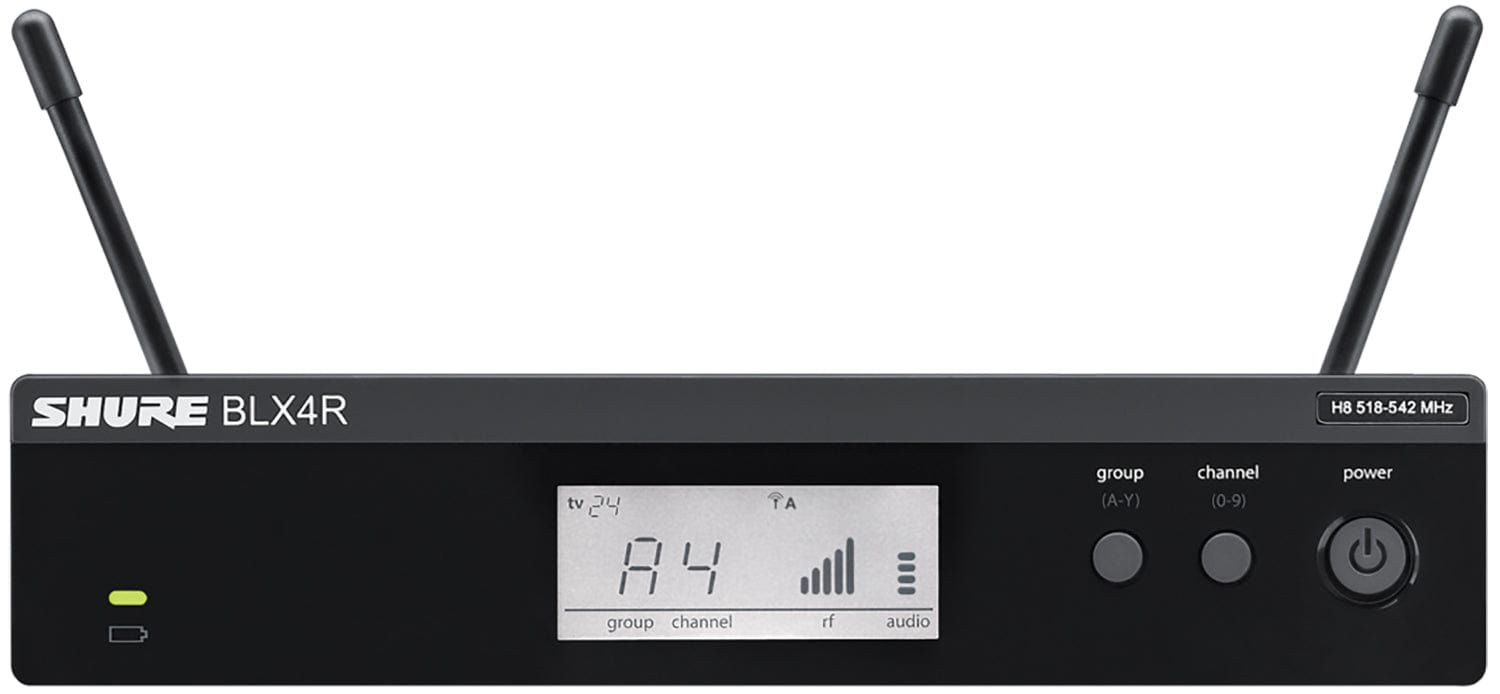

- • Receiver: Rackmount type, 1 RU (1/2 rack) size, 2 x 1/4 wave external detachable rear-mount antennas, 1 audio channel, XLR 3-pin male balanced output and 1/4' TS female unbalanced output, -27 dBV (mic level) XLR outputs, -13 dBV (instrument level) 1/4' outputs, 50 Hz to 15 kHz frequency response (dependent on mic), 200 Ohms XLR outputs, 50 Ohms 1/4' outputs, >50 dB adjacent channel isolation, AC/DC power adapter (12 to 15 VDC at 160 mA, center-positive, included), backlit LCD display (AF level, channel, group, metering, RF level) and LED (transmitter battery status), steel housing, 7.8 x 2 x 6.4' / 198 x 50 x 163 mm dimensions (without mounting hardware, antennas), 35.2 oz / 998 g weight.

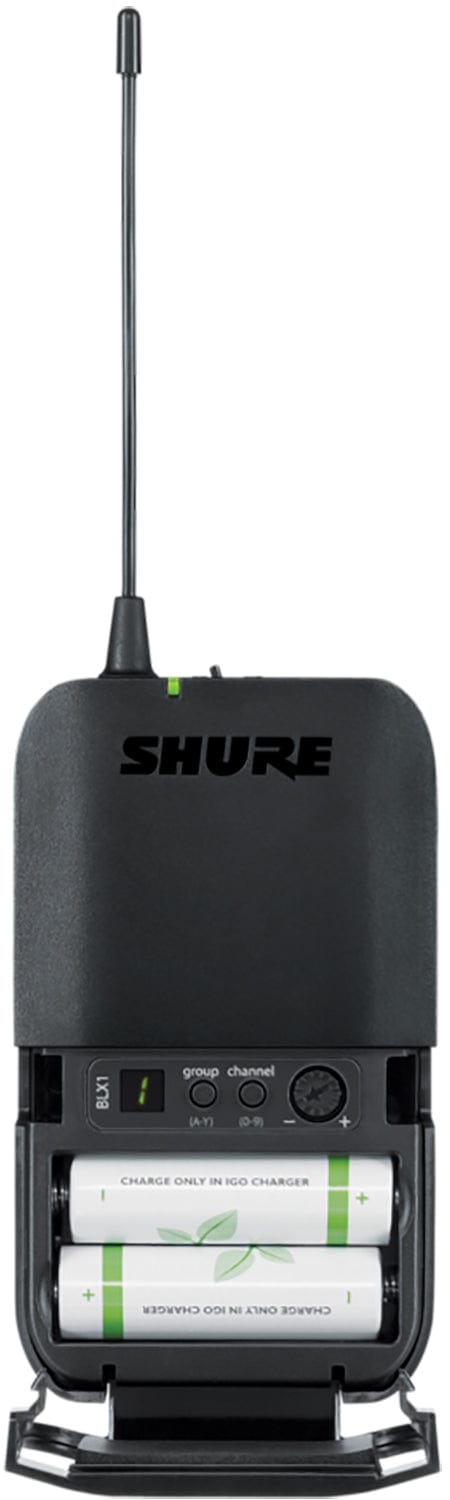

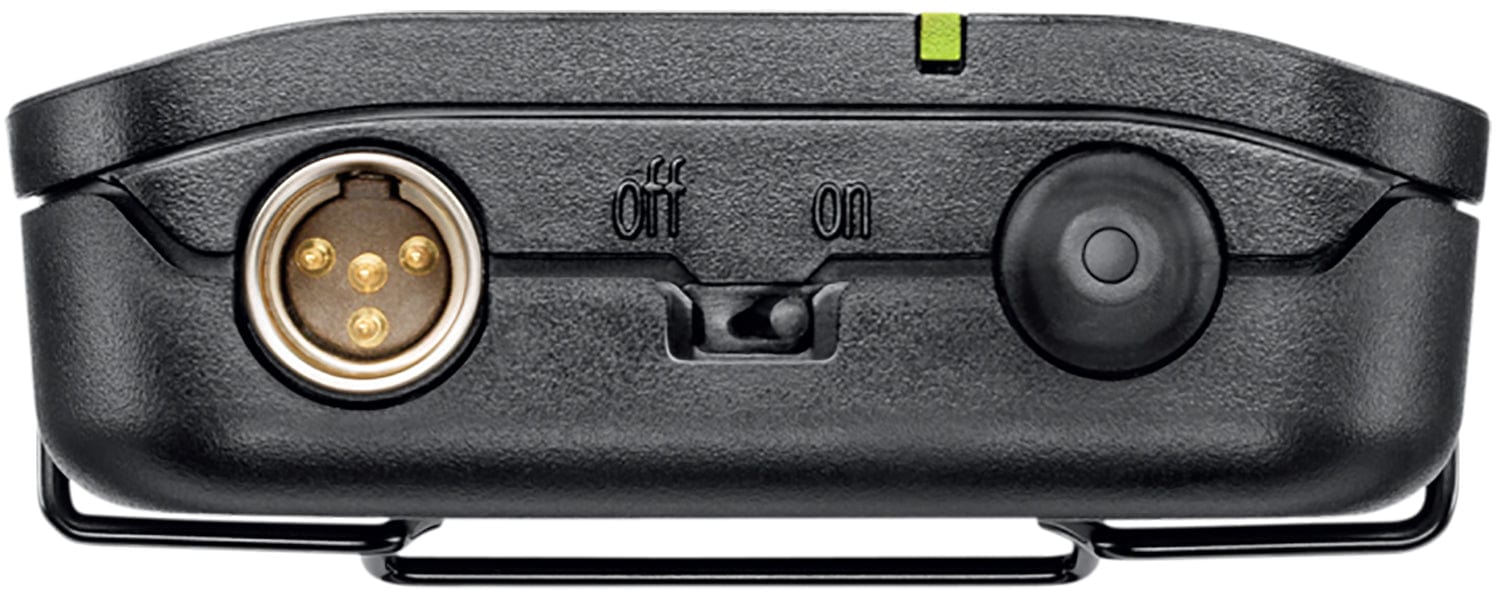

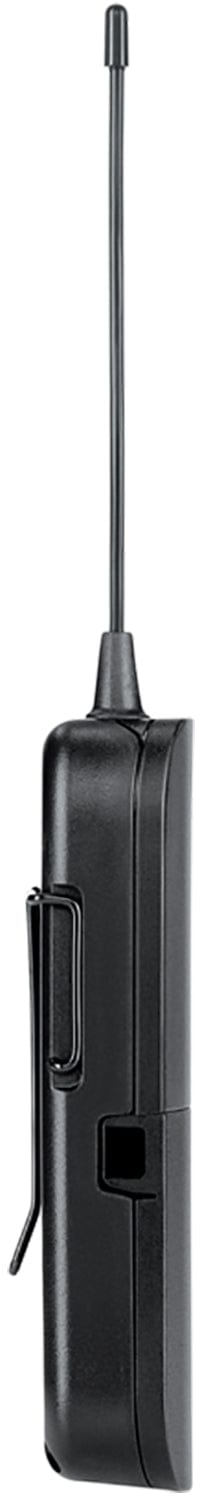

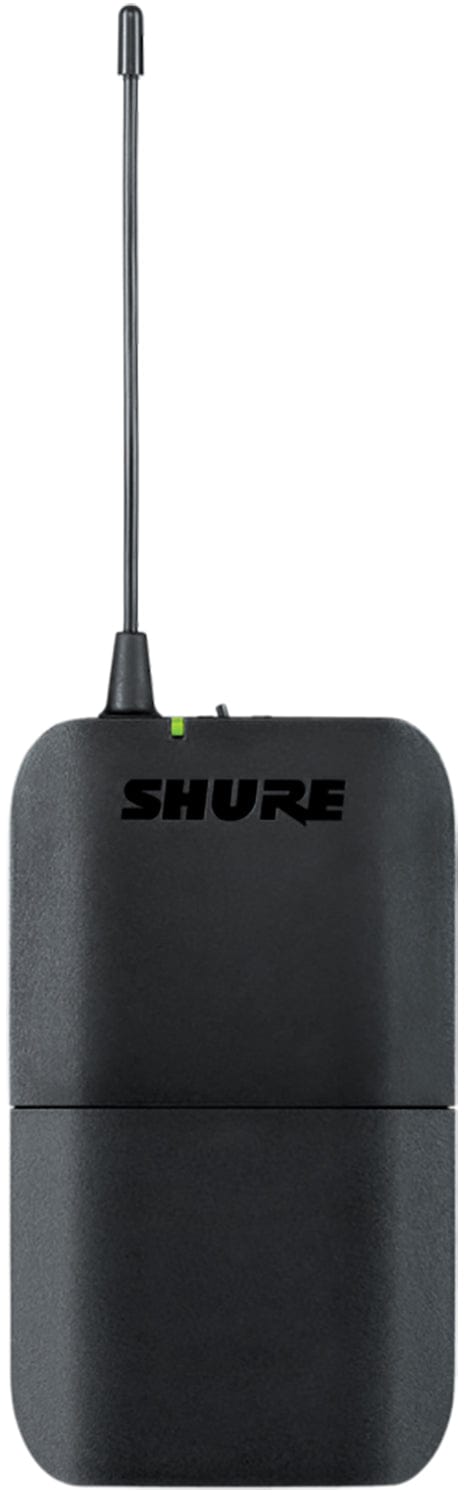

- • Transmitter: Bodypack type, 10 mW RF output power, TA4/Mini XLR 4-pin male input (lockable), 1/4' TS included cable connector, off/on switch muting, no auto-level control, -16 to +10 dB gain range, manual sync method, 1 x flexible whip fixed antenna (beltpack), battery power requirements (2 x AA included), approx. 14 hours battery life (alkaline), multi-segment LED display (channel, group) and LED (battery status, power), ABS housing, 2.5 x 4.3 x 0.8' / 64 x 110 x 21 mm dimensions, 2.6 oz / 75 g weight (without batteries).

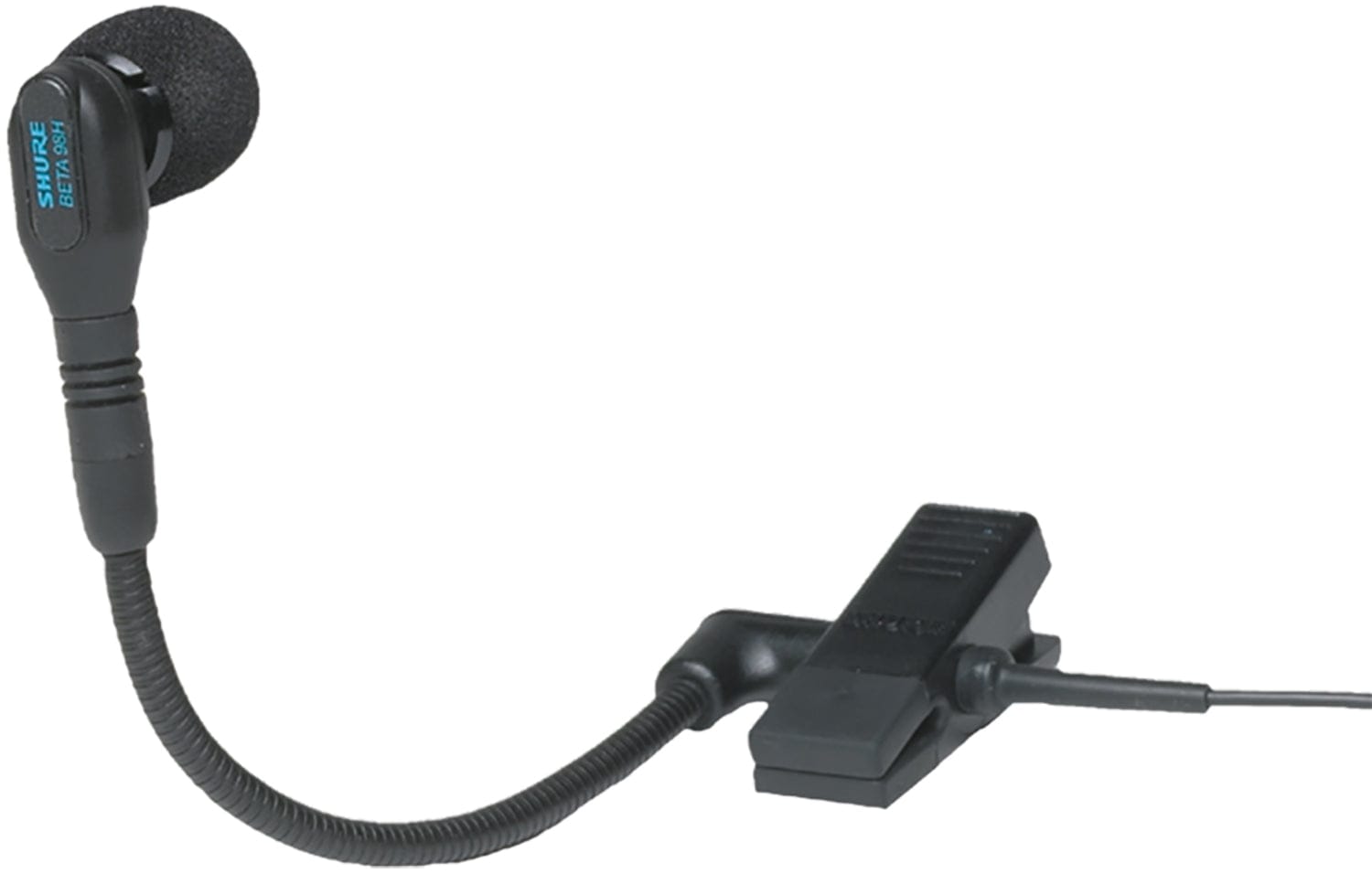

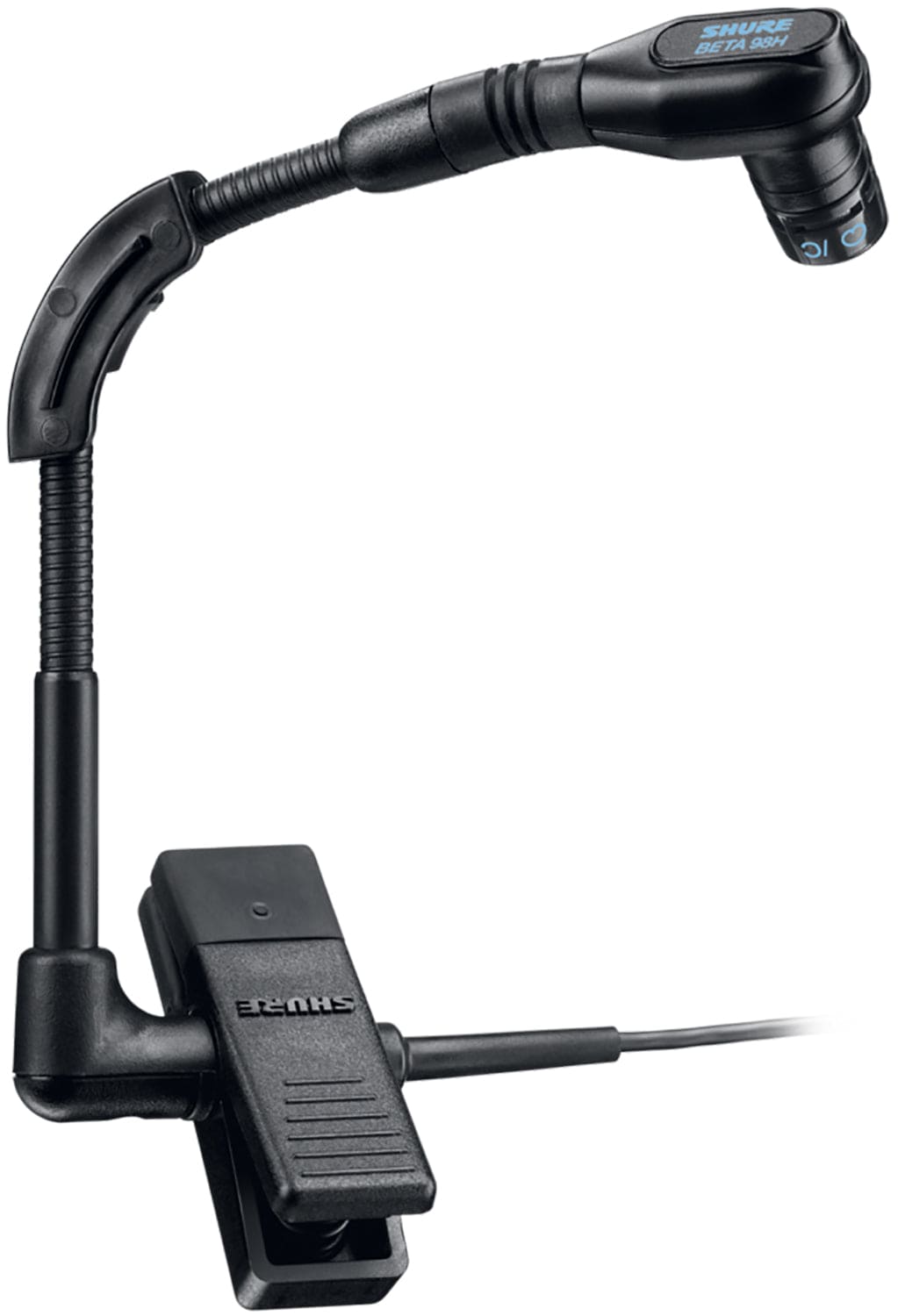

- • Microphone: Clip-on instrument type, suitable for clarinet, French horn, percussion/drum, saxophone, trombone, trumpet, tuba, black color, mono sound field, electret condenser capsule, cardioid polar pattern, 20 Hz to 20 kHz frequency range, 60 dB SNR, 34 dB equivalent noise level, 107 dB SPL maximum SPL, -41 dBV/Pa sensitivity, 73 dB dynamic range, 1 x TA4F/Mini XLR 4-pin female (lockable) output connector, 4' / 1.22 m cable length, 1 to 5 V operating voltage, 0.7 oz / 19.76 g weight.
This Shure BLX14R Wireless Rack-mount Instrument System is perfect for musicians and performers. Whether you're on stage or in a studio, it delivers professional-quality sound. It's easy to set up, so you can focus on your performance. The system includes a receiver, a transmitter, a microphone, and other accessories. It has a 1 RU rackmount size and weighs 35.2 oz / 998 g (receiver). The transmitter weighs 2.6 oz / 75 g (without batteries) and the microphone weighs 0.7 oz / 19.76 g. With up to 14 hours of battery life, you can keep performing without interruption.
