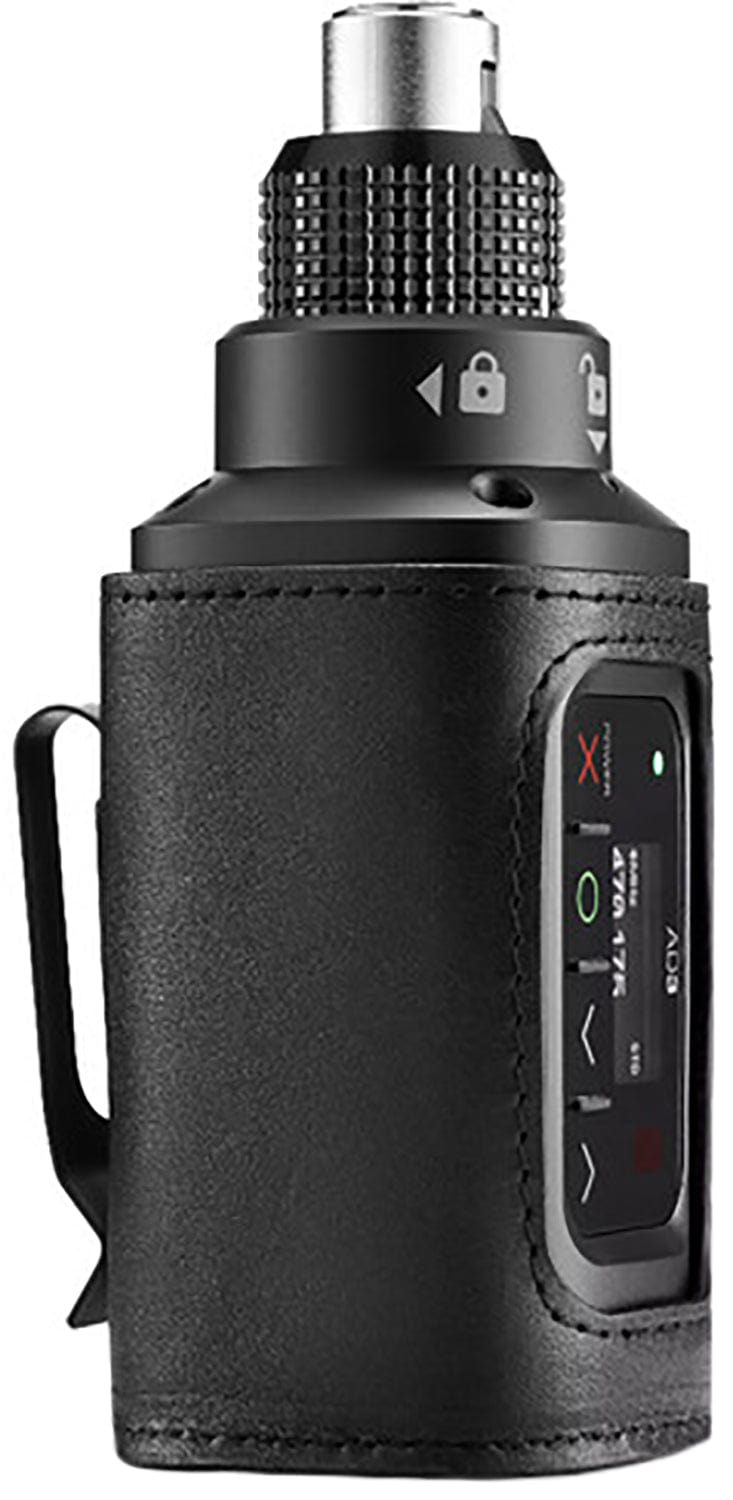

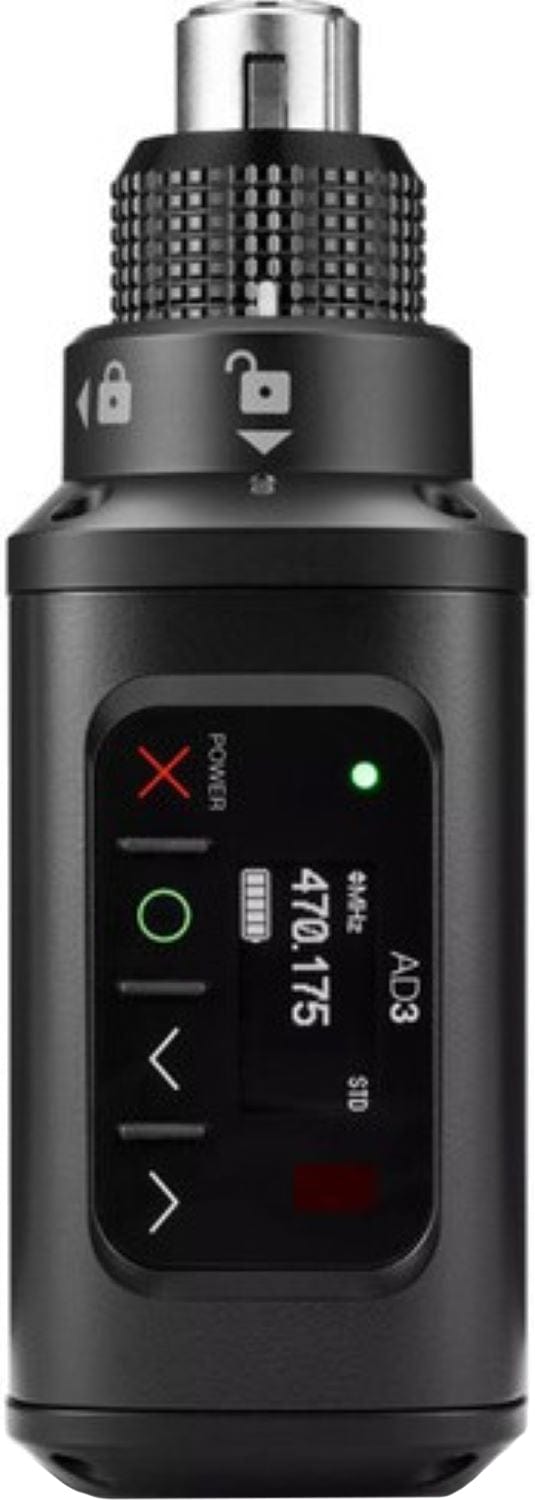

Shure Axient AD3 Digital Plug-on Transmitter - K54 Band
The Shure AD3 is a digital handheld wireless plug-on microphone transmitter that's perfect for high-profile sound-reinforcement applications. It's compatible with Axient Digital series receivers, so you can count on seamless connectivity.
• Works with Any Handheld or Shotgun Mic: The secure XLR connector and 48V phantom power let you use your favorite XLR microphones with the Axient digital wireless system.
• Adjustable RF Output Power: Choose from 2/10/35mW RF output power for the perfect transmission range of up to 330'.
• Long Battery Life: Get up to 8 hours of operation on two AA batteries or an SB900A lithium-ion rechargeable battery (available separately). The durable, moisture-resistant, lightweight aluminum housing ensures pristine audio quality and top-notch RF performance. Plus, it comes with AES 256-bit encryption for secure transmission and advanced rechargeability options.
Features:
- For Axient Digital Receivers

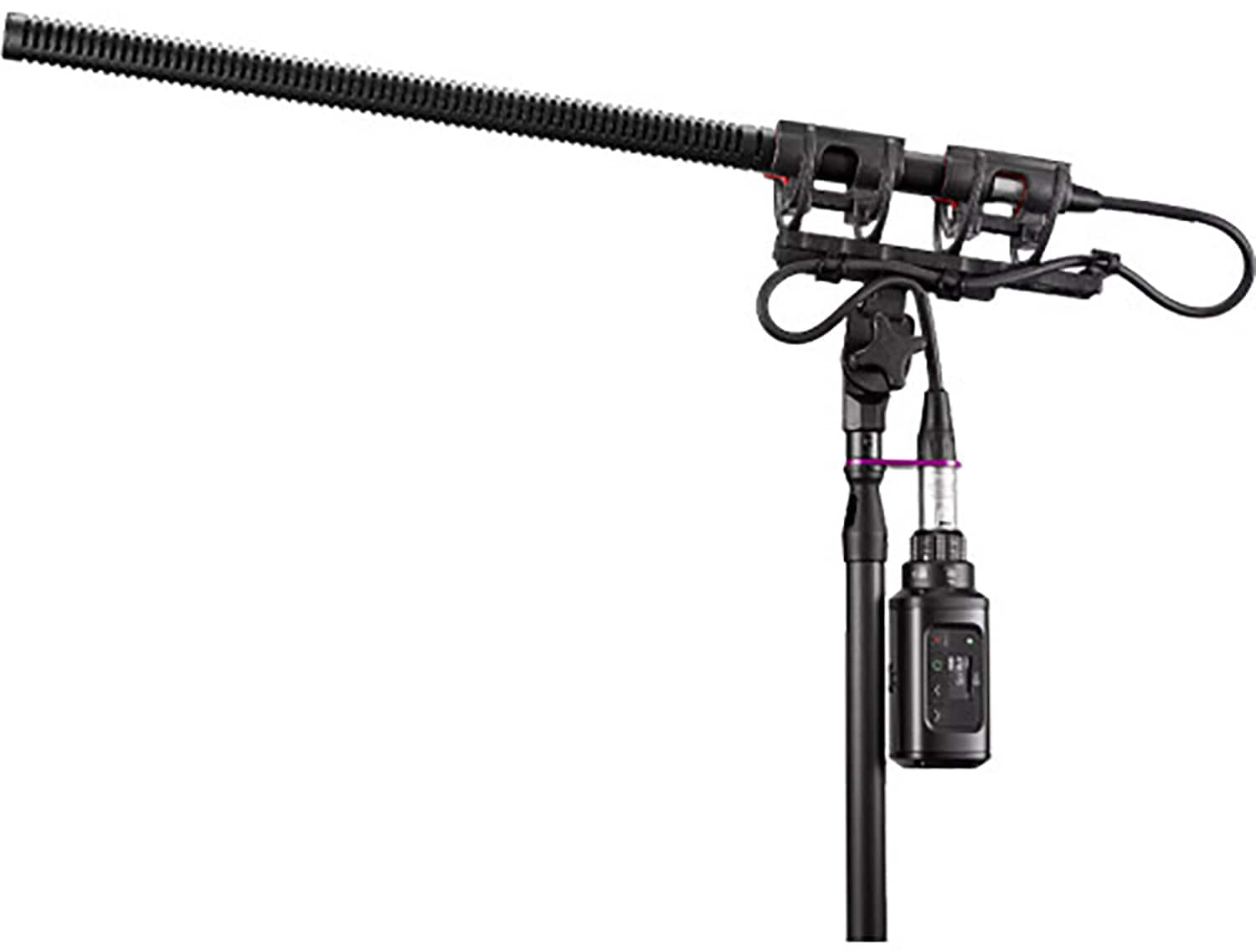

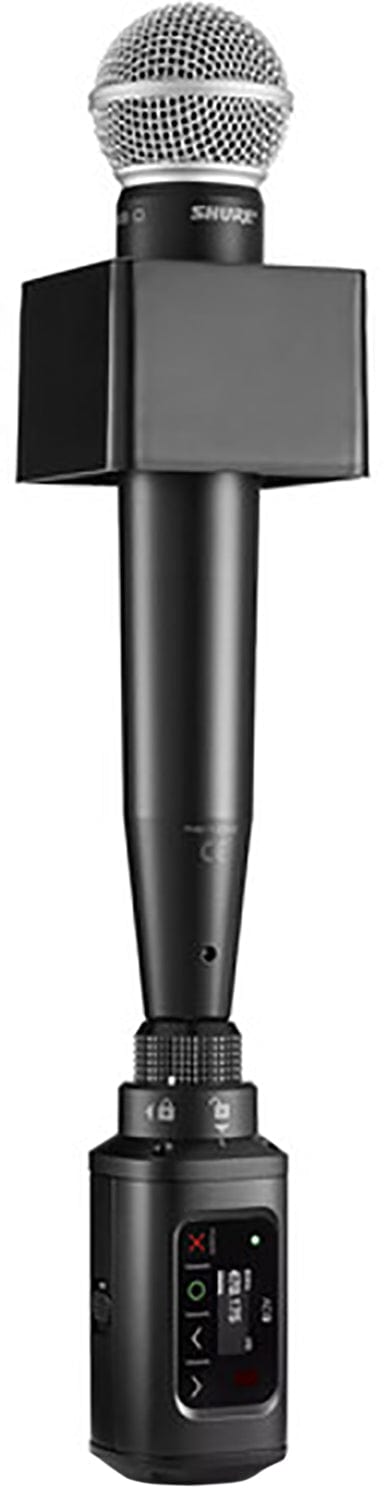

- Use with Any Handheld or Shotgun Mic
- XLR Connector with 48V Phantom
- Automatic Gain Adjustment
- 2/10/35mW RF Output Power
- Backlit LCD
- Secure AES-256 Encryption
- Networked Intelligent Charging
- 8 Hours with SB900A Rechargeable Battery
Specifications:
- RF Frequency Band: 606 to 663 MHz
- RF Bandwidth: 166 MHz
- Frequency Step Size: 25 kHz
- RF Channel Scanning: Auto-Scan
- Max Operating Range: 328.1' / 100 m (Line of Sight)
- Latency: 2 to 2.9 ms (Selectable)
- Encryption: AES 256
- Modulation: Proprietary
- Transmitter:
- Transmitter Type: Plug-On
- RF Output Power: 2 / 10 / 35 mW
- Audio I/O: 1 x XLR 3-Pin Female Balanced Input (Lockable)
- Phantom Power: +48 V
- Pad: None
- Auto-Level Control: Yes
- Gain Range: -12 to +21 dB (3 dB Steps)
- Signal Processing: None
- Frequency Response: 20 Hz to 20 kHz
- Sync Method: IR
- Antenna: 1 x Internal Single-Band Helical (Handheld)
- Power Requirements: Battery
- Battery Type:

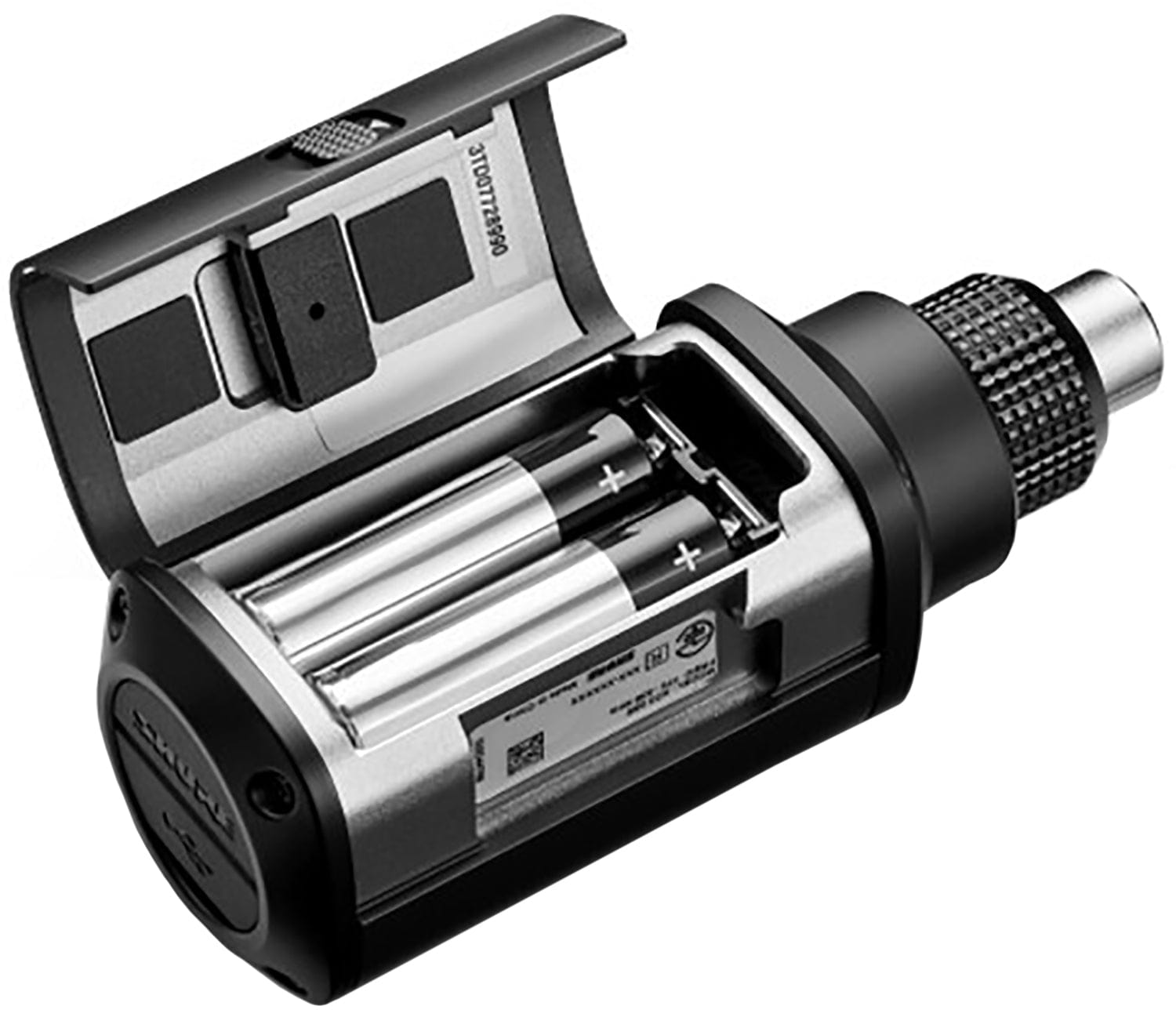

- 2 x AA (Included)

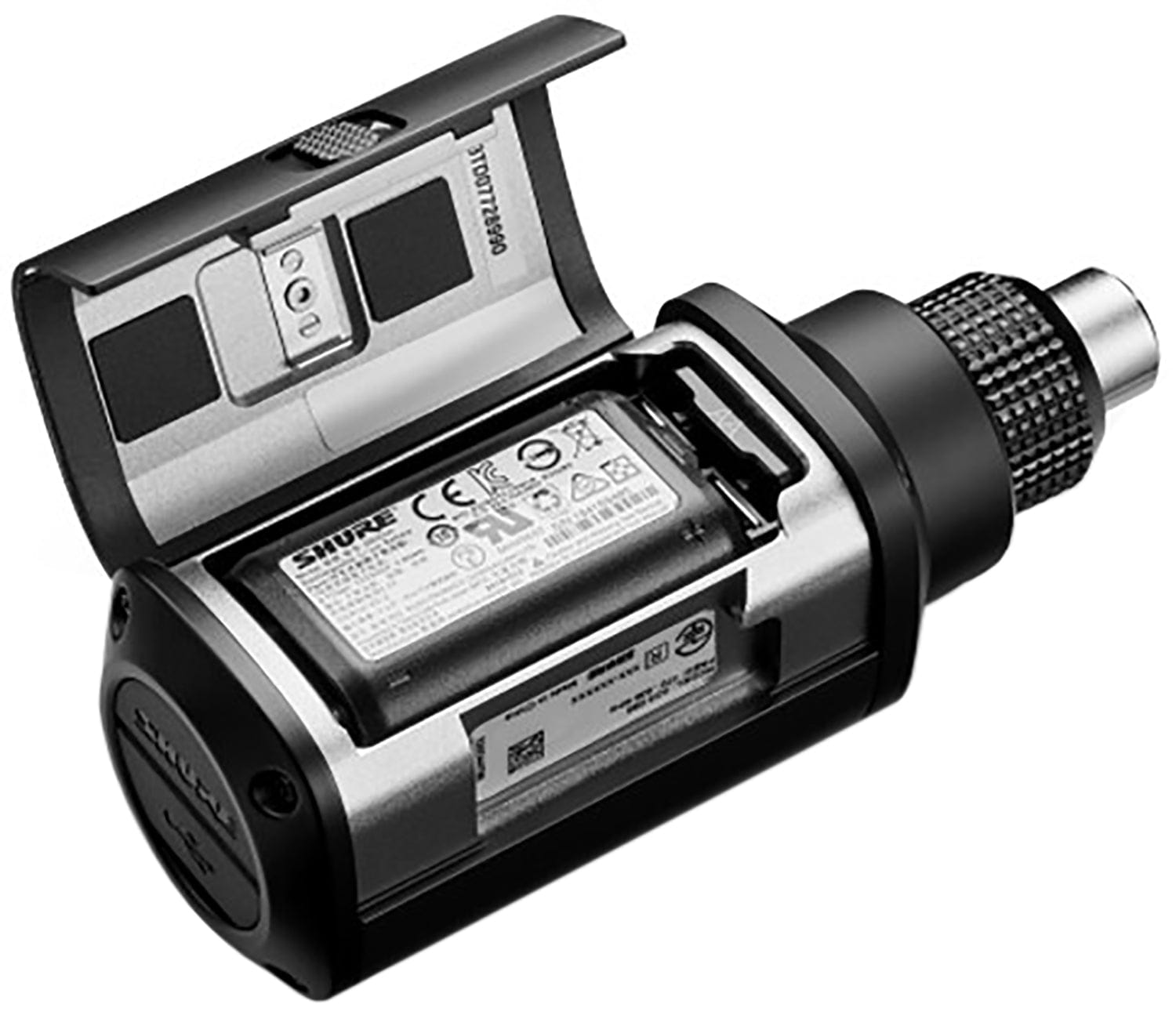

- 1 x Shure SB900A (Not Included, Replaceable)
- Approx. Battery Life:
- Med.: 8 Hours (Alkaline)
- Med.: 8 Hours (Lithium Shure SB900A)
- USB/Lightning I/O: 1 x USB-C (Charging)
- Display & Indicators: 1 x LCD (Battery Status, Channel, Group, Signal Strength)
- Housing: Aluminum
- Operating Temperature: 0 to 122°F / -17 to 50°C
- Storage Temperature: -20 to 165°F / -28 to 73°C
- Packaging Info:
- Package Weight: 1.475 lb
- Box Dimensions (LxWxH): 12.1 x 4.6 x 3.4'
