Sennheiser EW-D ME2/835-S SET Digital Wireless Combo System (Q1-6)

Sennheiser EW-D ME2/835-S Digital Combo Set Q1

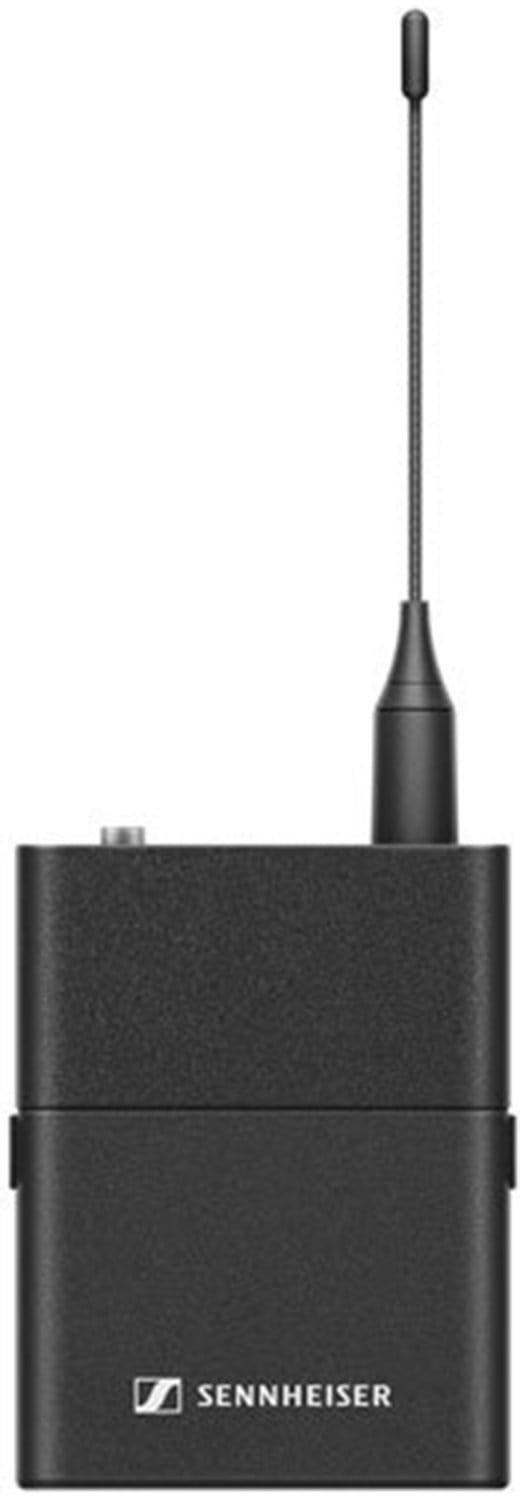

Unleash your potential with this versatile and feature-rich digital wireless system! Ideal for singers, speakers, and presenters, it offers seamless product pairing and management via the EW-D Smart Assist App. The robust bodypack transmitter with a metal housing is perfect for daily stage use.

Key Features:

• • Enhanced Range: Digital transmission in the UHF spectrum boosts range, reliability, and scalability.
• • Effortless Setup: Smart Assist App connects via Bluetooth Low Energy for a streamlined experience.
• • High-Definition Audio: 134 dB audio input dynamic range preserves every detail.

Specifications:

• Frequency range: 470.2 - 526 MHz
• THD, total harmonic distortion: ≤ -60 dB for 1 kHz @ -3 dBfs input level
• Operating temperature: -10 °C - +55 °C (14 °F - 131 °F)
• Operating relative humidity: 5 - 95 % (non-condensing)
• Audio frequency response: 20 Hz - 20 kHz (-3 dB) @ 3 dBfs
• EW-D EM:
  • Dimensions: 212 x 44 x 189 mm
  • Weight: approx. 1000 g (without antennas and power supply)
  • Current consumption: ≤ 300 mA
  • Input voltage range: 11 - 13 V
  • Audio output level: 18 dBu max.
  • Transmission power: BLE: max. 10 mW EIRP
• EW-D SKM-S:
  • Dimensions:
    • 50 x 268 mm (incl. MMD 835 microphone module)
    • 40 x 200 mm (without microphone module)
  • Power supply: 2 AA batteries 1.5 V (alkaline manganese) or BA 70 rechargeable battery pack
  • Current consumption: < 300 mA
  • Input voltage range: 2.0 - 4.35 V
  • Transmission power:
    • Audio link: 10 mW
    • ERP (Range Y1-3: 12 mW ERP)
    • BLE: max. 10 mW EIRP
  • Weight:
    • approx. 304 g (incl. MMD 835 microphone module)
    • approx. 195 g (without microphone module)
• MMD 835:
  • Dimensions: 405 x 350 x 73 mm
  • Sound pressure level (SPL): 154 dB
  • Transducer principle: dynamic
  • Weight: 3.1 kg
  • Pick-up pattern: cardioid
  • Sensitivity: 2.1 mV/Pa
• ME 2 :
  • Cable length: approx. 1.60 m
  • Connector: 3.5 mm jack
  • Frequency response: 50 to 18,000 Hz
  • Max. sound pressure level: 130 dB
  • Transducer principle: pre-polarized condensor microphone
  • Pick-up pattern: omni-directional
  • Sensitivity in free field, no load (1kHz): 17 mV/Pa
  • Equivalent noise level: 32 dB
  • Power supply: 7.5 V

This Sennheiser EW-D ME2/835-S Digital Wireless Combo System is perfect for singers, speakers, and presenters on stage. It offers seamless pairing and management via the EW-D Smart Assist App. The bodypack transmitter has a metal housing for daily use. The system features enhanced range with digital UHF transmission, effortless setup via Bluetooth Low Energy, and high-definition audio. The EW-D EM unit has dimensions of 212 x 44 x 189 mm and weighs about 1000 g (without antennas and power supply). The EW-D SKM-S unit has different dimensions depending on whether it includes the MMD 835 microphone module, and weighs approximately 304 g (with module) or 195 g (without module). The MMD 835 microphone has dimensions of 405 x 350 x 73 mm, a sound pressure level of 154 dB, and weighs 3.1 kg. The ME 2 has a cable length of about 1.60 m and a 3.5 mm jack connector.
