Sennheiser ew 500 FILM G4 Evolution Wireless Portable Combo Mic Set

Sennheiser ew 500 FILM G4 Portable Combo Set GW1

Get broadcast-quality sound with this highly versatile wireless system! Ideal for professional interviews and recording, it offers ultimate sound quality, simple mounting, and ease of use.

• • Professional sound for professional film work
• • Easy setup - no hassle, no fuss
• • Long-range wireless - up to 100 meters

What's in the box:

• EK 500 G4 camera receiver

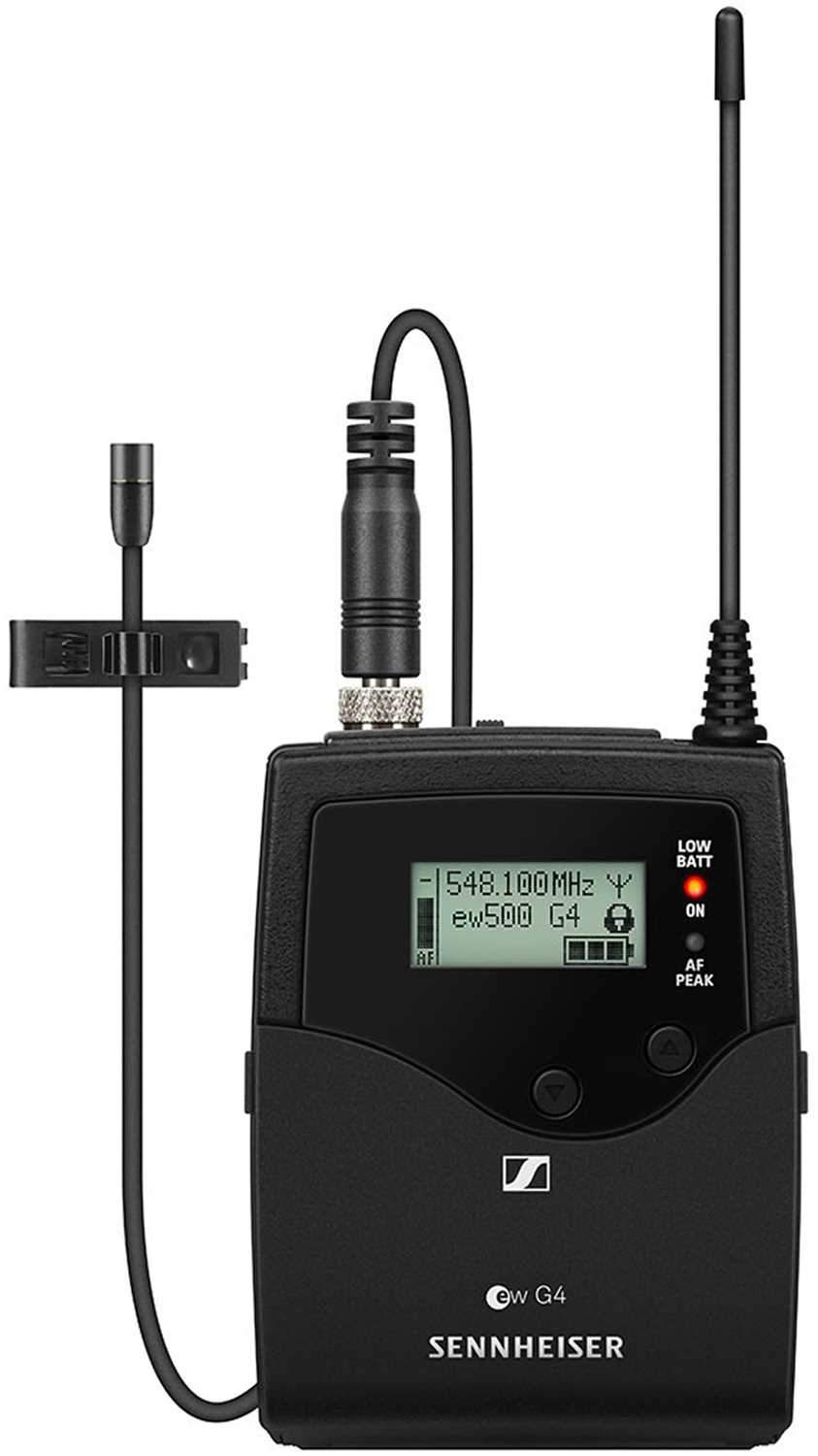

• SK 500 G4 bodypack transmitter

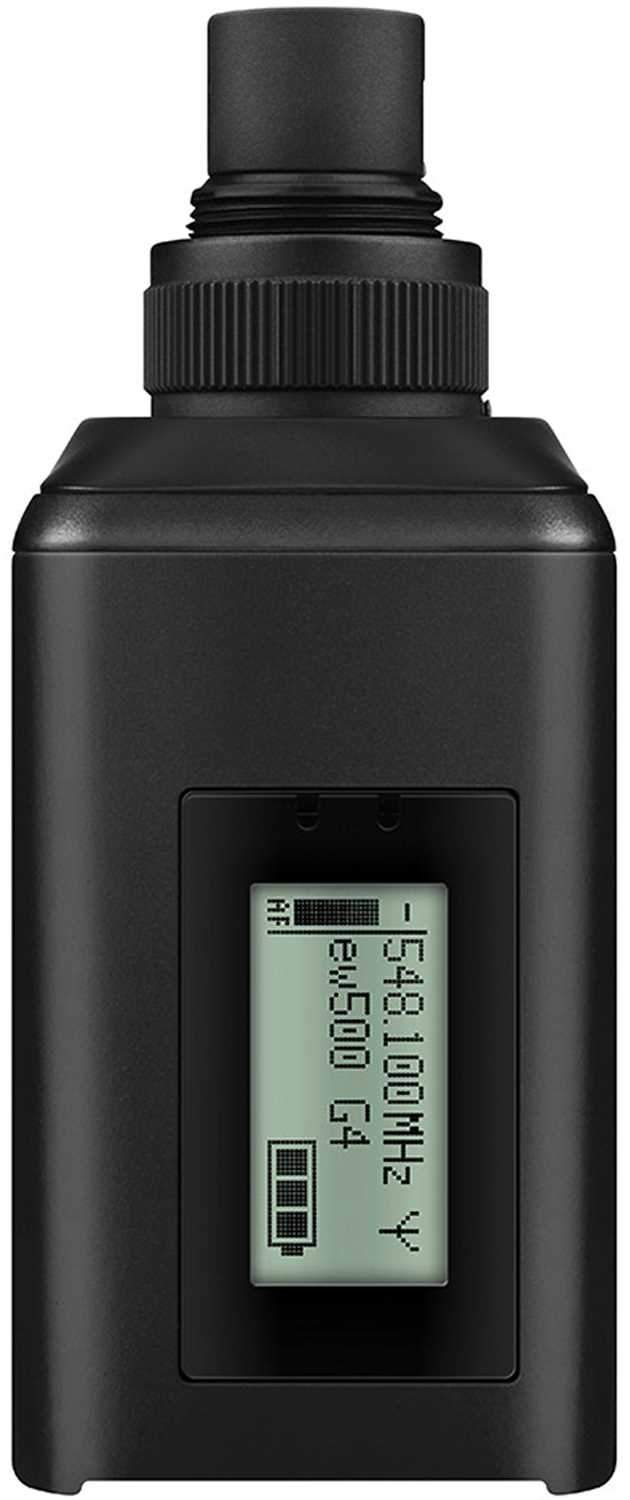

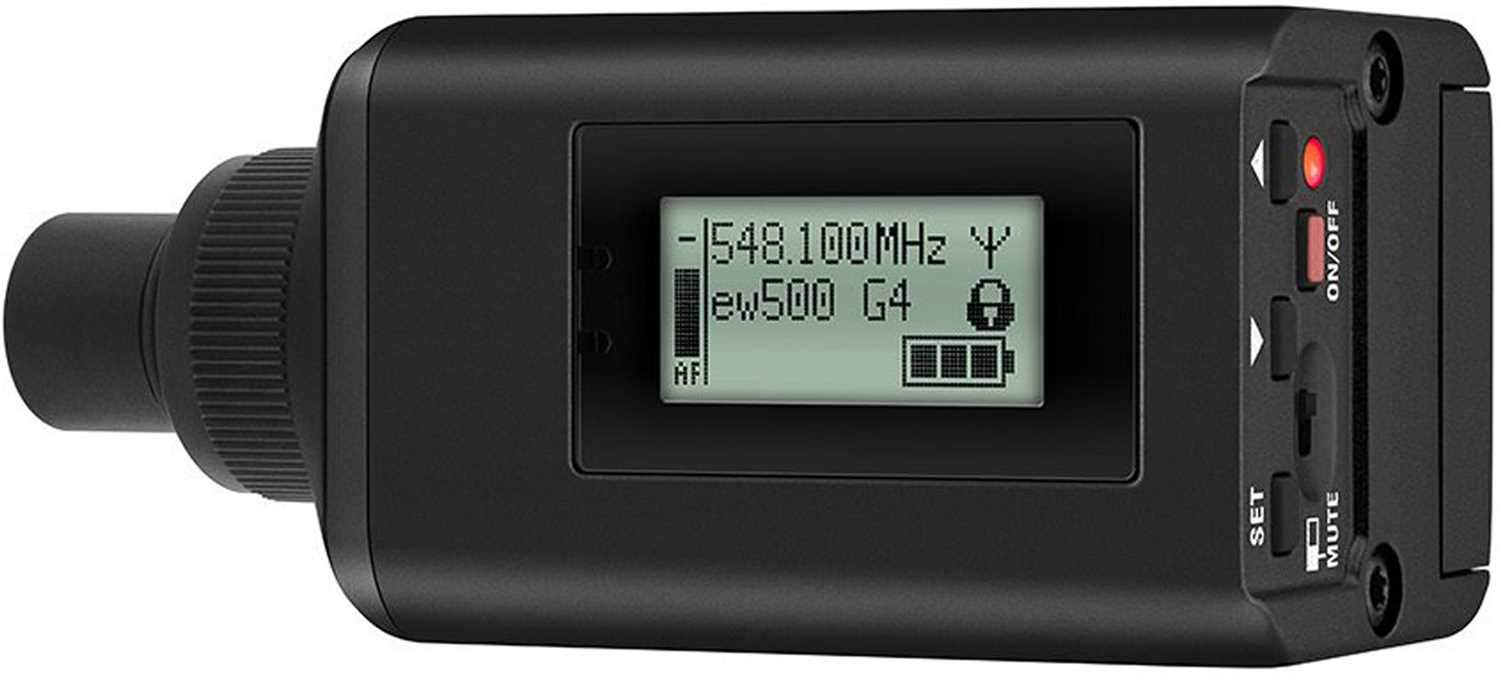

• SKP 500 G4 pro plug-on transmitter
• MKE 2 clip-on microphone
• 4 AA batteries
• CL 1 3.5 mm jack cable
• CL 500 XLR to 3.5 mm jack adapter cable
• CA 2 camera adapter
• fur windscreen for MKE 2
• quick guide
• safety guide
• manufacturer declaration sheet

Features:

• Highly versatile solution for professional film sound: Rugged all-in-one wireless system for professional interviews and recording
• Professional sound and excellent construction quality
• Easy to use and fast setup time
• Easy and flexible wireless synchronisation between transmitter and receiver via infrared
• Up to 88 MHz bandwidth, up to 32 channels
• Range: up to 100 meters / 330 feet
• Increased RF output power (10/30/50 mW)
• Up to 8 hours of operation time
• With 48 V phantom powering

Specifications:

EK 500 G4

• Frequency range: 558 - 608 MHz
• Dimensions: Approx. 82 x 64 x 24 mm
• Compander: Sennheiser HDX
• THD, total harmonic distortion: 0.9 %
• Weight: (incl. batteries) approx. 130 g
• Audio output: 3.5 mm jack socket: +17 dBu (mono, balanced)
• Signal-to-noise ratio: Line: 110 dBA Phones: approx. 90 dBA
• Switching bandwidth: up to 88 MHz
• Peak deviation: ±48 kHz
• Nominal deviation: ±24 kHz
• Operating time: Typically 8 h
• Modulation: Wideband FM
• Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
• Current consumption: at nominal voltage: typ. 140 mA with receiver switched off: 25 ¦ÌA
• Adjacent channel rejection: Typically 65 dB
• Intermodulation attenuation: Typically 65 dB
• Powering: 3 V battery / 2.4 V rechargeable battery
• Receiving frequency: Max. 3520 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation 6 frequency banks with up to 32 programmable channels
• RF sensitivity: < 1.6 V for 52 dBA eff S/N
• Squelch: low: 5 dB¦ÌV middle: 15 dB¦ÌV high: 25 dB V
• Temperature Range: -10 °C to +55 °C
• Receiver Principle: Adaptive naversity
• Blocking: 70 dB

SK 500 G4

• Dimensions: Approx. 82 x 64 x 24 mm
• Compander: Sennheiser HDX
• THD, total harmonic distortion: 0.9 %
• Weight: (incl. batteries) approx. 160 g
• Signal-to-noise ratio: 115 dBA
• RF output power: switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW
• Switching bandwidth: up to 88 MHz
• Peak deviation: ±48 kHz
• Nominal deviation: ±24 kHz
• Operating time: Typically 8 h
• Modulation: Wideband FM
• Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
• Current consumption: at nominal voltage: typ. 180 mA with transmitter switched off: 25 ¦ÌA
• Input impedance: 40 k, unbalanced / 1 M
• Max. Input voltage: 3 Veff
• Powering: 3 V battery / 2.4 V rechargeable battery
• Transmission frequency: Max. 3520 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
• AF frequency response: Mic: 80 – 18,000 Hz, Line: 25 – 18,000 Hz
• Temperature Range: -10 °C to +55 °C
• Frequency stability: ±15 ppm

SKP 500 G4

• Dimensions: Approx. 105 x 43 x 43 mm
• Compander: Sennheiser HDX
• THD, total harmonic distortion: 0.9 %
• Weight: (incl. batteries) approx. 195 g
• Signal-to-noise ratio: 120 dBA
• RF output power: switchable: Low: typ. 10 mW Standard: typ. 30 mW High: typ. 50 mW
• Switching bandwidth: up to 88 MHz
• Peak deviation: ±48 kHz
• Nominal deviation: ±24 kHz
• Operating time: Typically 8 h
• Modulation: Wideband FM
• Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
• Current consumption: at nominal voltage: typ. 210 mA with transmitter switched off: 25 ¦ÌA
• Input impedance: 68 k, unbalanced
• Max. Input voltage: 6 Veff
• Powering: 3 V battery / 2.4 V rechargeable battery
• Transmission frequency: Max. 3520 frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation 6 frequency banks with up to 32 programmable channels
• AF frequency response: 80 – 18,000 Hz
• Temperature Range: -10 °C to +55 °C
• Frequency stability: ±15 ppm

MKE 2

• Connector: 3.5 mm jack
• Frequency response: 20 to 20.000 Hz ± 3 dB
• Max. sound pressure level: 142 dB
• Cable length: approx. 1.60 m
• Transducer principle: pre-polarized condensor microphone
• Pick-up pattern: omni-directional
• Sensitivity in free field, no load (1kHz): 5 mV/Pa, ± 3 dB
• Equivalent noise level: 26 dB
• Equivalent noise level weighted as per CCIR 468-3: 39 dB

This Sennheiser ew 500 FILM G4 Evolution Wireless Portable Combo Mic Set is a must-have for professional filmmakers. It's perfect for on-location interviews and recording. The set comes with an EK 500 G4 camera receiver, SK 500 G4 bodypack transmitter, SKP 500 G4 pro plug-on transmitter, MKE 2 clip-on microphone, and more. With dimensions varying for each component, and weights as follows: EK 500 G4 (incl. batteries) approx. 130 g, SK 500 G4 (incl. batteries) approx. 160 g, SKP 500 G4 (incl. batteries) approx. 195 g, it offers professional sound quality, easy setup, and long-range wireless up to 100 meters. Ideal for those seeking broadcast-quality sound for their film projects.
