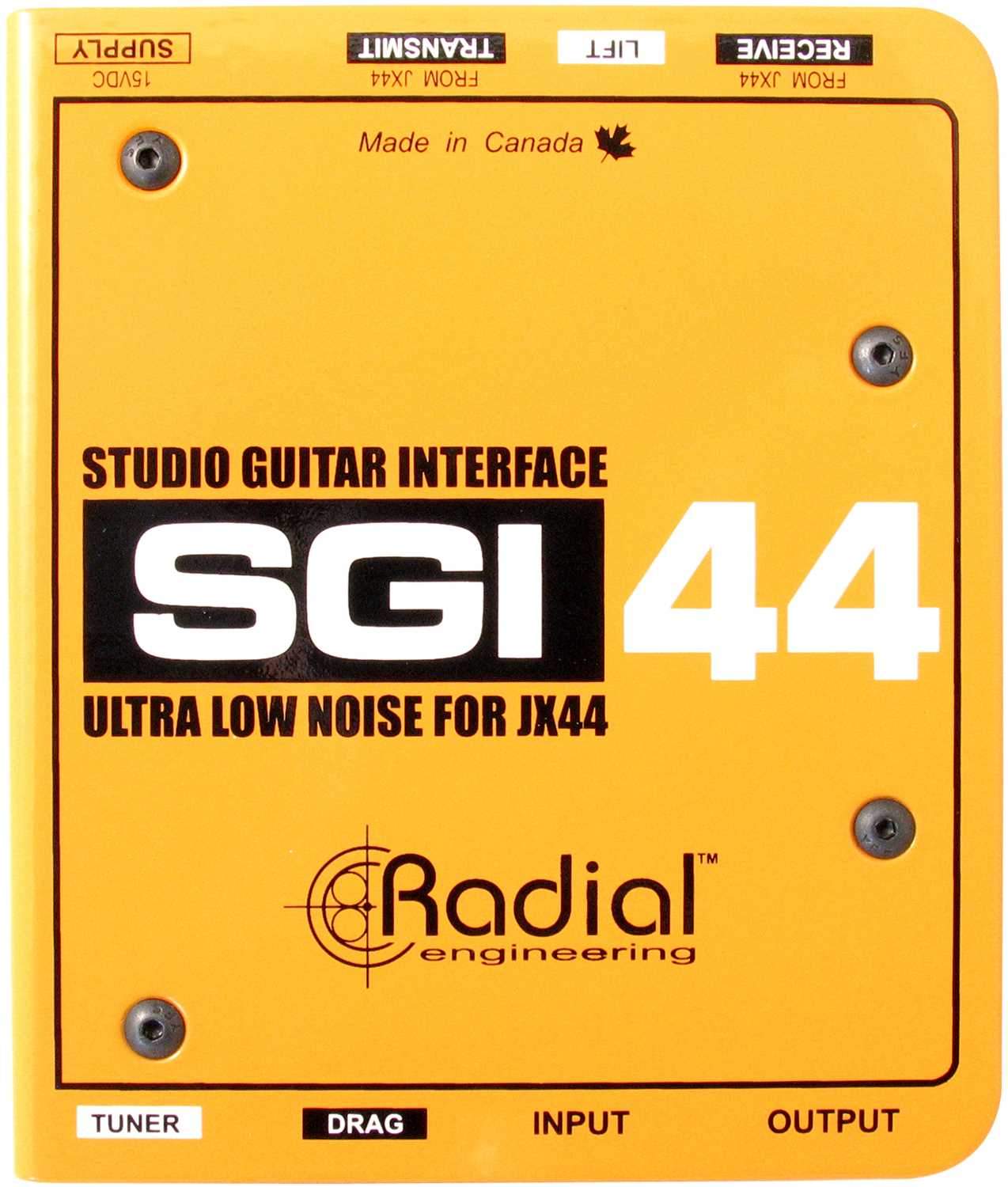

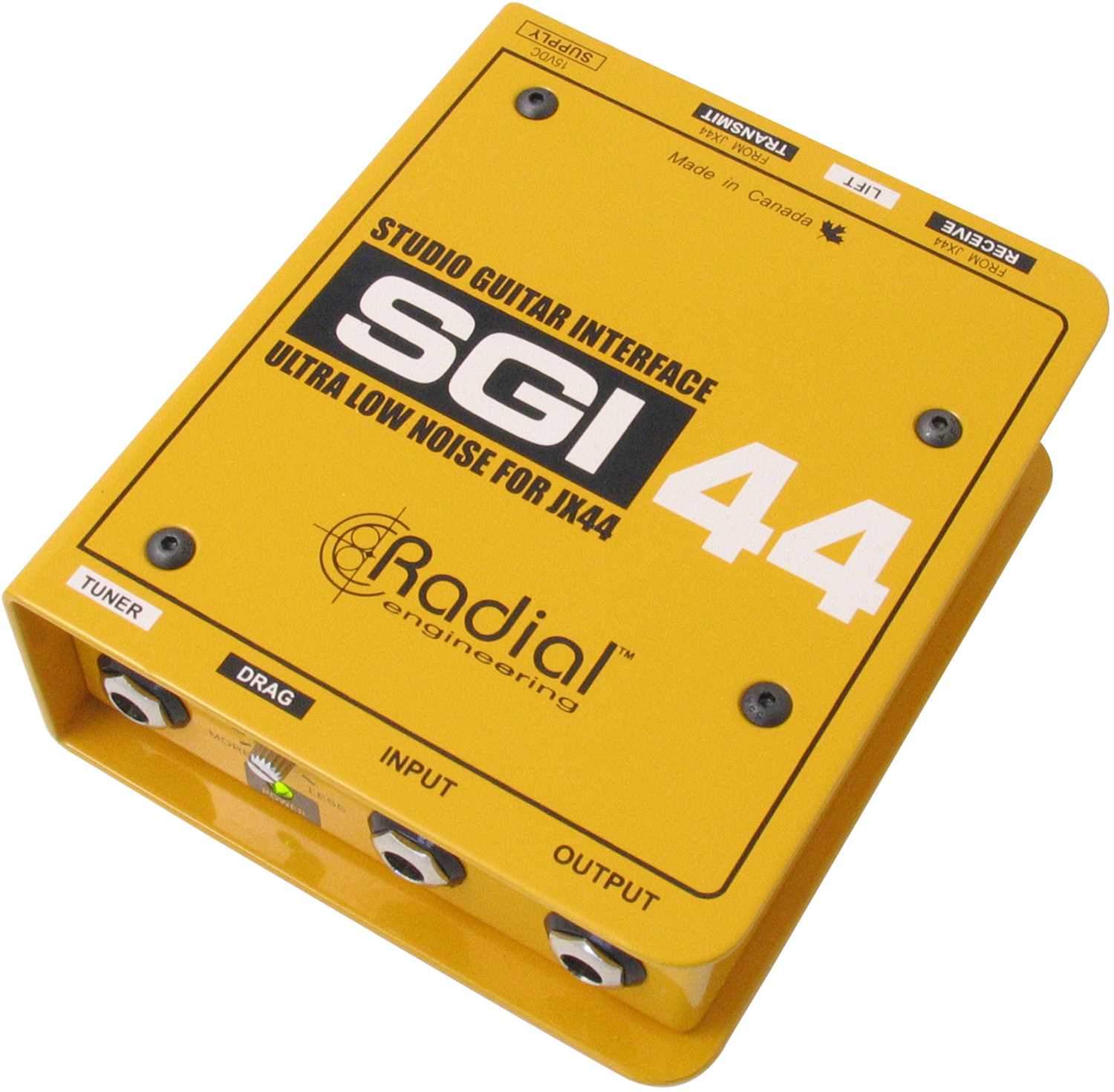

Radial SGI44: The Ultimate Long-haul Interface for JX44
Enhance your guitar setup with this amazing interface!
• Long-distance signal transmission: Send guitar signals over 100 meters without loss or noise. • Bidirectional routing: Effortlessly route signals to and from your pedalboard. • Studio and stage ready: Ideal for both studio sessions and live performances.
The SGI-44 is a must-have for guitarists looking to expand their setup. It allows you to connect a remote pedalboard to the JX-44 without any signal loss or noise. With its built-in send and receive functions, you can easily route signals in both directions.
Connect to your pedalboard remotely
The SGI-44 enables you to keep your pedalboard at your feet on stage while your stage tech manages instrument switching and amp control remotely. It can also be used to extend the effects loop of your amplifier to any point on stage. The SGI-44 takes care of all the balancing, buffering, and impedance matching to ensure clean and distortion-free signals.
SGI-44 Applications
Using the SGI 44 with the Radial JX44
Pair the SGI-44 with the Radial JX44 for easy distant effects routing. Simply connect them with XLR cables to send signals from the wireless receiver to the pedals and back without noise or signal loss.
Using the SGI-44 in the studio
Play your guitar using your 100 watt amp in an isolation room while monitoring through studio monitors. Connect your guitar to the first SGI-44, run an XLR cable to a second unit, and connect to your amp at the other end. Adjust the Drag Control for the perfect tone.
Using the SGI-44 on a concert stage
Overcome signal routing problems on stage. Set one SGI-44 near the wireless receiver and another at the pedalboard. Connect with XLR cables for a 100% isolated signal path.
Features:
- Balanced line driver for JX-44 guitar & amp switcher
- Send signal over 100 meters (300ft) without loss
- 100% discrete class-A circuit with Drag control
- Bidirectional send & receive effects router

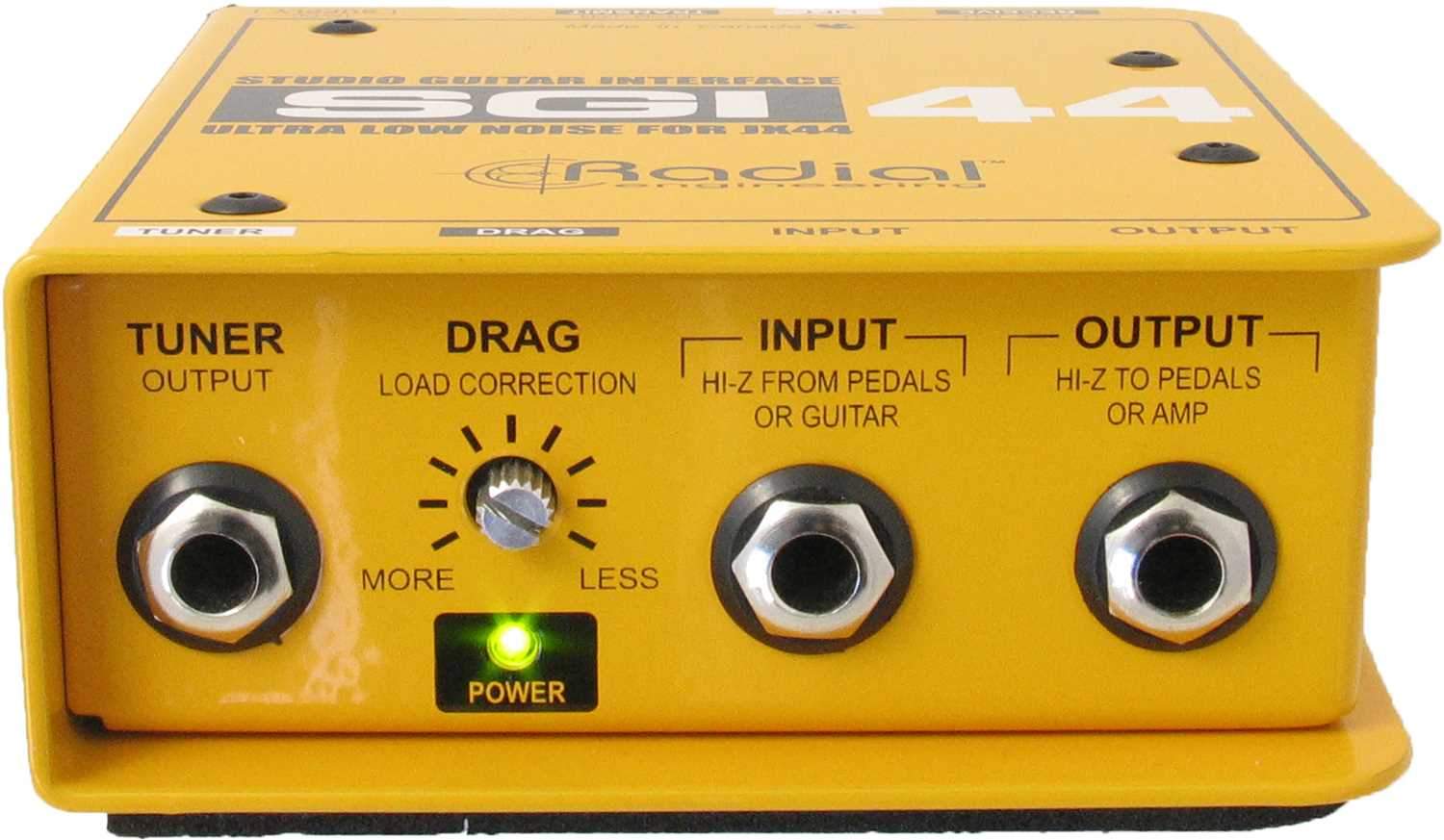

- Tuner
Separately buffered 1/4' high impedance output for electronic tuner. - Drag
Lets you adjust the load on passive pickups for more realistic tone. - Power LED
Green LED indicator shows power supply connection. - Input
Green LED indicator shows power supply connection. - Output
1/4' jack sends signal to guitar amp or effects pedals. - Receive

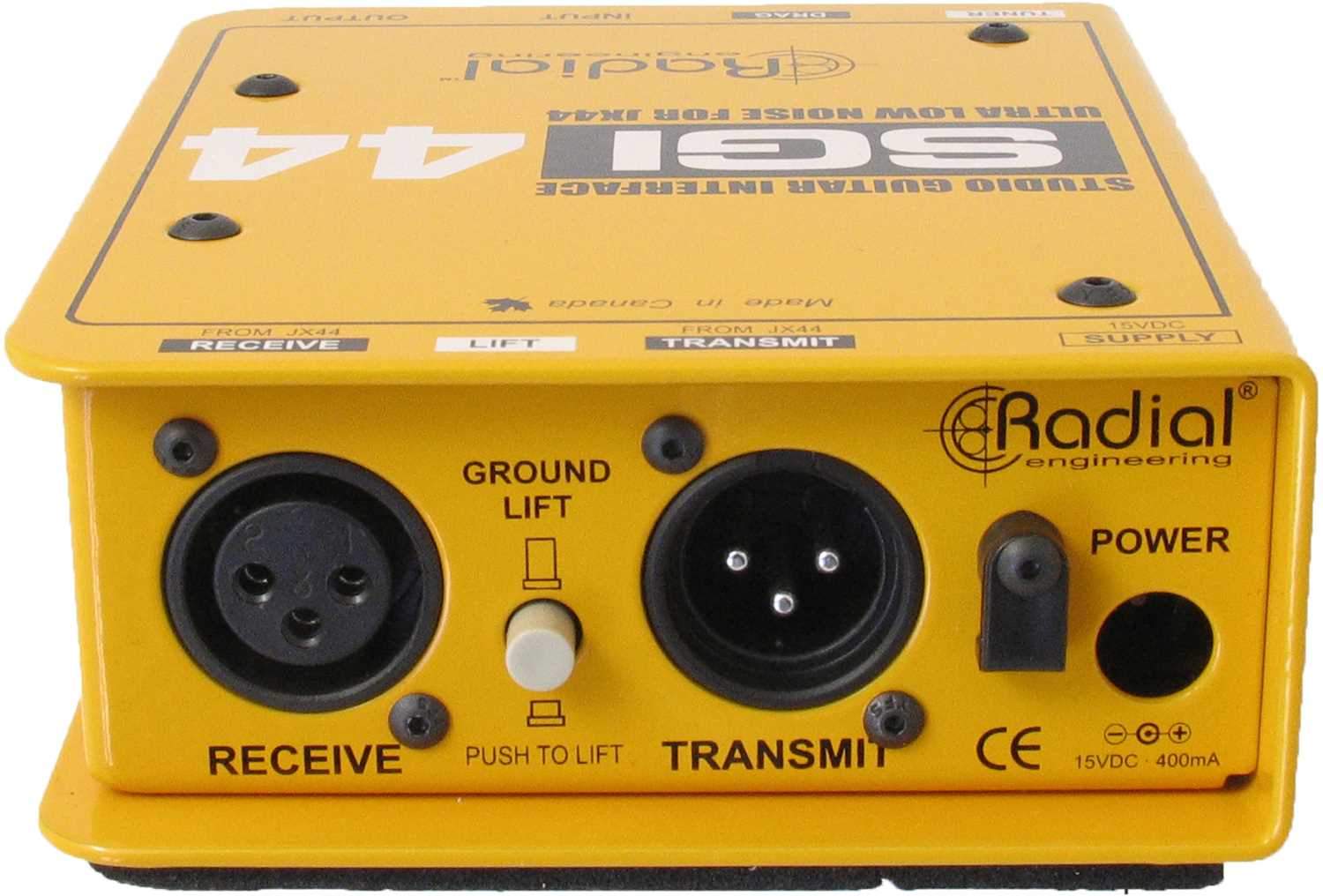

1/4' Female XLR accepts proprietary balanced signal from source SGI-44 transmit output. - Lift
Female XLR accepts proprietary balanced signal from source SGI-44 transmit output. - Transmit
Male XLR sends proprietary balanced signal to second SGI-44 receive input. - Power
Male XLR sends proprietary balanced signal to second SGI-44 receive input. - Warranty: Radial 3-year, transferable
Specifications:
- Audio circuit type: Active 100% discrete class-A with transformer isolation
- Frequency response: 20Hz ~ 20kHz (-2dB)
- Dynamic range:105dB
- Total harmonic distortion:0.005% @ 1k
- Intermodulation Distortion: 0.02% @ 1k
- Input Impedance: Variable from 10k Ohms ~ 1 megaOhm
- Output Impedance: 218 Ohms ( 'unbal. output); 280 Ohms (TX bal. output)
- Noise:-100dBu
- Maximum Input:+2dBu
- Features
- Ground lift, Drag Control
- Input Connectors: 1/4', XLR
- Output Connectors: 1/4', XLR
- General
- Construction: 14-gauge steel chassis & outer shell
- Size (L x W x D): 4.25' x 2' x 5' (102 x 76 x 165mm)
- Weight:3lbs. (1.36kg)
- Shipping size (L x W x D): 5.25' x 2.5' x 11' ( 127 x 64 x 279mm)
- Shipping weight: 3.1lbs (1.41kg)
- Power: +15VDC/400mA adapter included
- Conditions:For use in dry locations only between 5°C and 40°C
The Radial SGI44 is a game-changer for guitarists. Whether you're in the studio or on stage, this interface allows you to connect a remote pedalboard to the JX-44 without signal loss or noise. With its long-distance signal transmission and bidirectional routing capabilities, you can easily expand your setup. The SGI44 features a 100% discrete class-A circuit with Drag control for optimal tone. It also has a tuner output and separate indicators for power, input, and output. The interface comes with a +15VDC/400mA adapter and is designed for use in dry locations between 5°C and 40°C. Its compact size (4.25' x 2' x 5') and lightweight (3lbs) make it easy to transport. Ideal for guitarists looking to enhance their playing experience.
