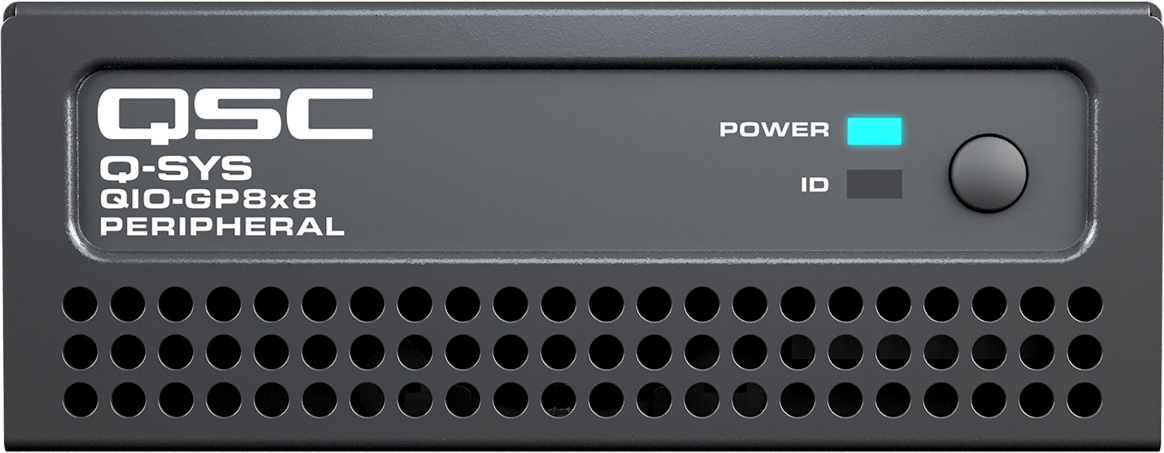

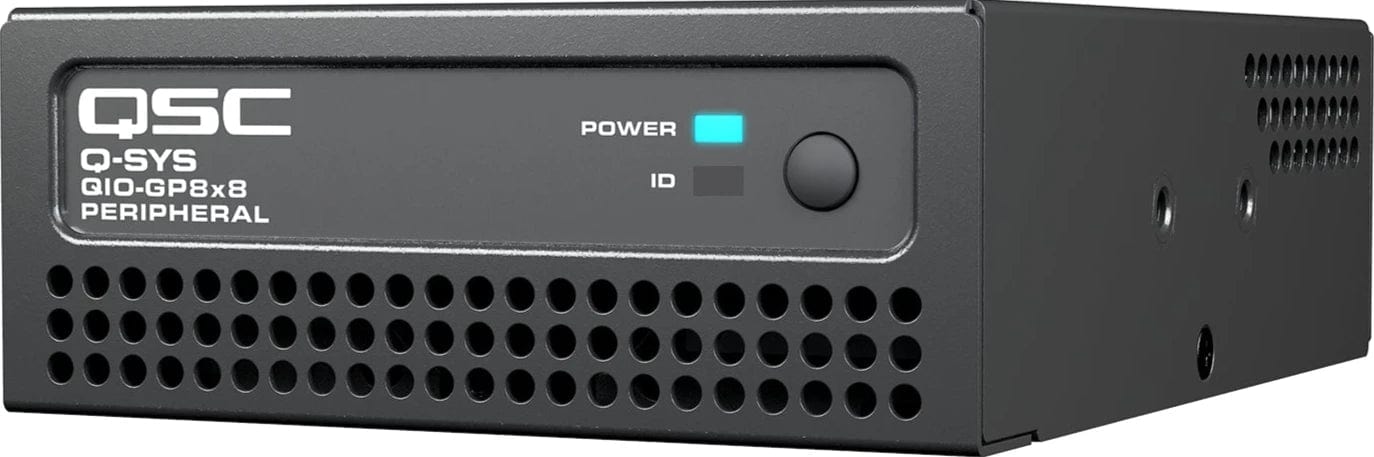

Q-SYS QIO-GP8x8: Expand Your Network I/O with Ease
The Q-SYS QIO-GP8x8 supercharges your Q-SYS system, enabling seamless interoperability with non-networked control devices via GPIO. By separating local I/O from processing hardware, it offers modular and scalable network I/O for your desired setup.
Flexible GPIO Connectivity
Deploy GPIO control connectivity exactly where you need it! The QIO-GP8x8 provides 8 logic inputs and 8 outputs, perfect for connecting to occupancy sensors, push buttons, and more. Its compact form factor can be mounted on a rack or surface.
Customizable I/O Expansion
Add network I/O to your Q-SYS system effortlessly. Decouple I/O location from processing hardware for distributed or centralized setups. Customize your configuration and enhance new Q-SYS Core models.
Simple & Scalable
Daisy-chain up to four devices on one network for less clutter and easy expansion. Or use PoE for single-cable connectivity. Manage it all via Q-SYS Designer Software.
Features & Benefits
- Native network GPIO for Q-SYS
- 8 logic inputs and 8 outputs
- Power over Ethernet (PoE) capable

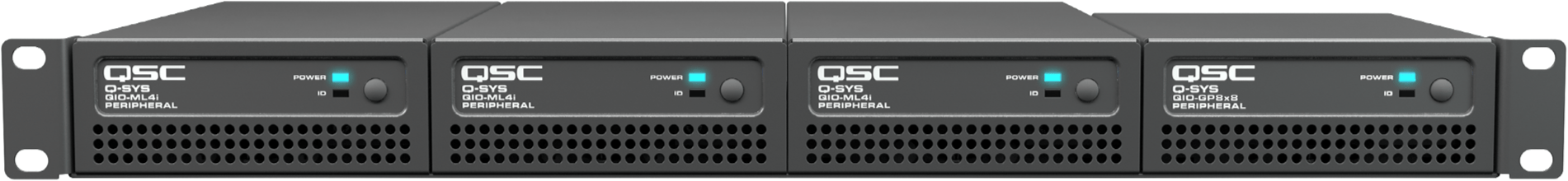

- Daisy-chain up to four expanders
- Easy integration & management
- Surface- or rack-mountable
- Includes mounting hardware
Specifications

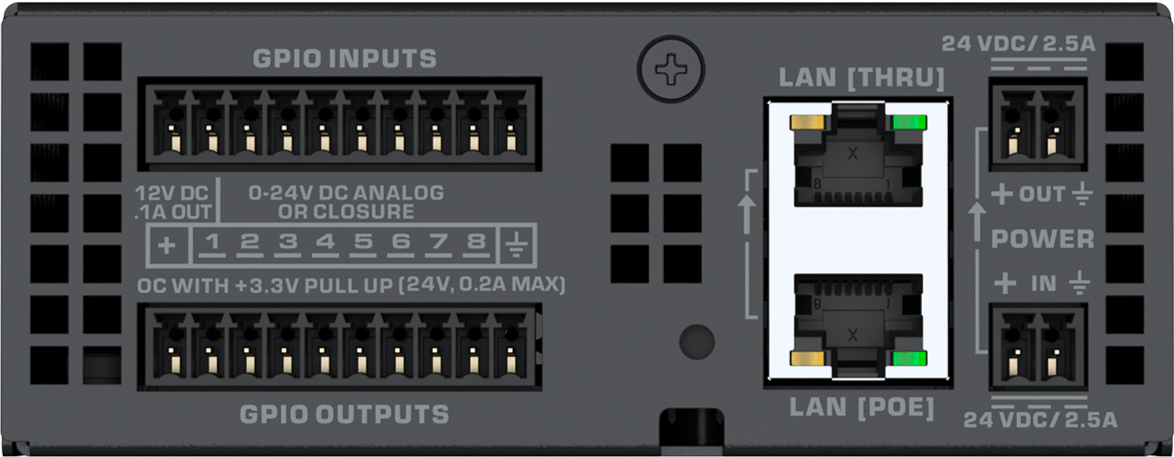

- General purpose inputs: 0-24 VDC analog, digital, or contact closure; configurable pull-up
- General purpose outputs: Open collector, 24 VDC @ 200 mA sink max
- GPIO 12 VDC power pins: 12 VDC out at 100 mA max per pin
Other Connectors
- External power supply: 24 VDC nominal, 2.5 A
- LAN (PoE): Gigabit LAN, PoE
- PoE specification: IEEE 802.3af Type 1
- LAN (Thru): Ethernet daisy-chaining
General
- Dimensions: 5.5 x 4.25 x 1.59 in
- Weight: 1.18 lb
- Mounting options: Surface- and rack-mountable
Environmental
- Ambient operating temperature range: 0°C to +50°C
- Humidity: 0%-85% through 30°C non-condensing
- Storage temperature: -20°C to +70°C
- Compliance: FCC, IC, CE, RoHS, WEEE, China RoHS, EAC, UL, C-UL, NOM-019
The Q-SYS QIO-GP8x8 is perfect for those looking to expand their network I/O. It's great for system integrators and installers. With dimensions of 5.5 x 4.25 x 1.59 in (139.7 x 108 x 40.4 mm) and weighing 1.18 lb (0.54 kg), it's easy to handle. Use it in control rooms, conference centers, or any space where you need to connect non-networked devices to your Q-SYS system. It offers 8 logic inputs and 8 outputs, along with flexible mounting options like surface or rack-mounting.
