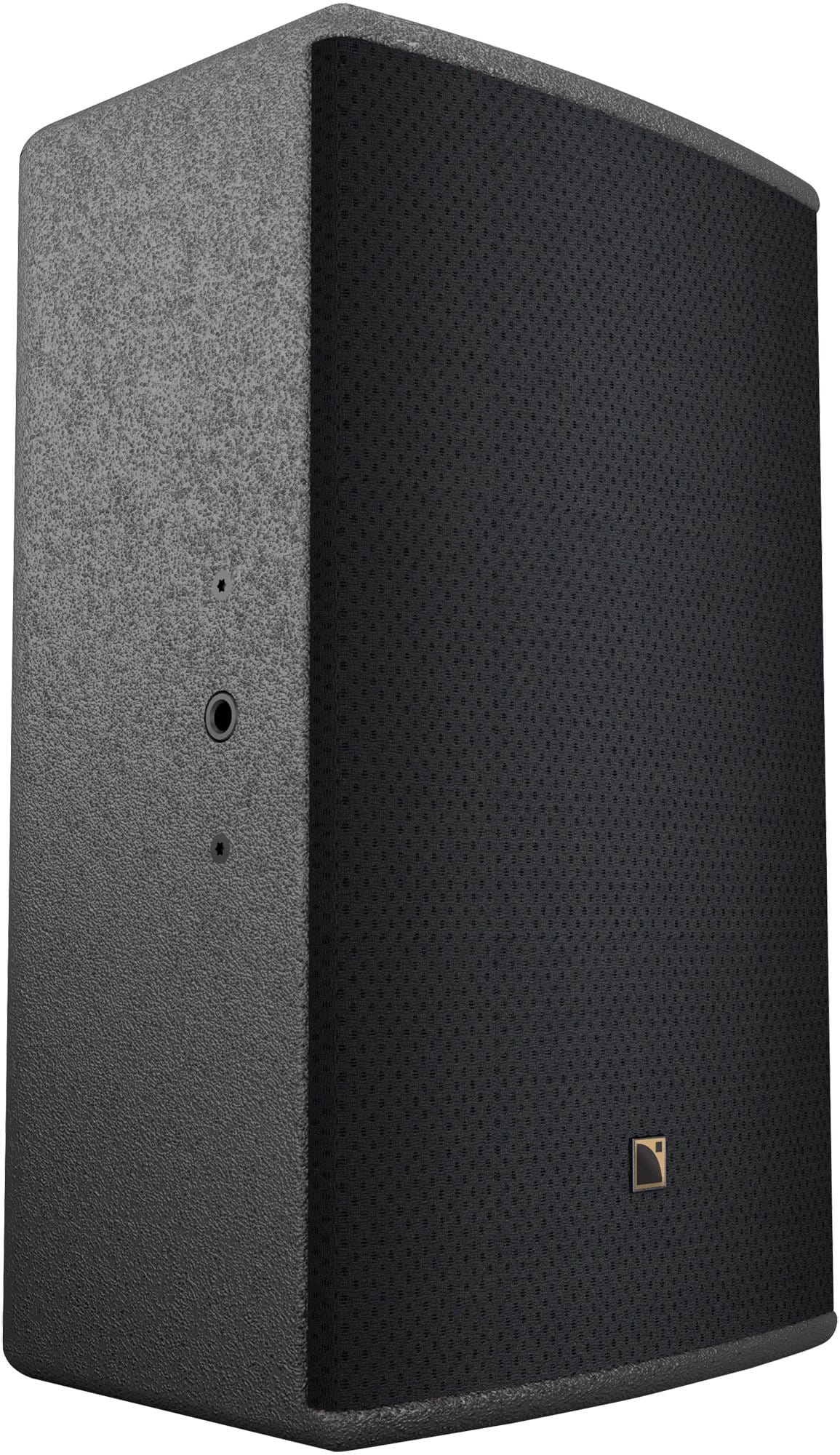

L-Acoustics X8: Your Ultimate Passive 2-Way Coaxial Speaker for Impactful Sound
Unleash the power of sound with the L-Acoustics X8! This remarkable coaxial speaker is designed for live monitoring and short throw sound reinforcement applications, making it perfect for musicians, event organizers, and audio enthusiasts. With its sleek design, the X8 minimizes visual impact while delivering exceptional audio quality.
Key Features:
- • Compact and powerful, ideal for on-stage monitoring and small venues
- • Exceptional sound quality with a smooth tonal response across the frequency range
- • Custom filters for precise sound reproduction
Technical Specifications:
- • Usable bandwidth (-10 dB): 60 Hz - 20 kHz (X8 preset)
- • Maximum SPL: 129 dB (X8 preset)
- • Nominal directivity: Axisymmetric 100°
- • Monitoring angle: 35°
- • Transducers: LF: 1 x 8', bass-reflex, laminar vents; HF: 1 x 1.5' neodymium compression driver
- • Nominal impedance: 8 Ω
- • Connectors: IN: SpeakON; LINK: SpeakON
- • Rigging and handling: 1 x handle, DIN580-compatible M8 threaded insert, 4 x M10 threaded inserts, 35 mm pole socket
- • Weight (net): 12 kg / 26.5 lb
- • Cabinet: First grade Baltic birch and beech plywood
- • Finish: Dark grey brown Pantone 426C, Pure white RAL 9010, Custom RAL code on special order
- • IP: IP43
The L-Acoustics X8 is a passive 2-way coaxial speaker designed for live monitoring and short throw sound reinforcement applications. It's great for musicians, event organizers, and anyone needing high-quality sound. With a 1.5'' diaphragm compression driver coaxially loaded by an 8'' low frequency transducer in a bass-reflex cabinet, it offers a smooth tonal response. The L-Vents laminar vented ports reduce turbulence and port noise. It operates from 60 Hz to 20 kHz. The coaxial transducer arrangement produces a 100° axisymmetric directivity output. The internal passive crossover network uses custom filters. It can be controlled and amplified by LA4X / LA8. Specifications include a usable bandwidth (-10 dB) of 60 Hz - 20 kHz, maximum SPL of 129 dB, nominal directivity of 100°, monitoring angle of 35°, transducers with a LF 1 x 8' and HF 1 x 1.5' neodymium compression driver, nominal impedance of 8 Ω, SpeakON connectors, various rigging and handling features, a net weight of 12 kg / 26.5 lb, a cabinet of first grade Baltic birch and beech plywood, different finish options, and an IP rating of IP43.
