JBL ASC24: The Ultimate 2x4-Channel Crossover and Signal Processor for Immersive Audio
May only be bought as part of a complete system

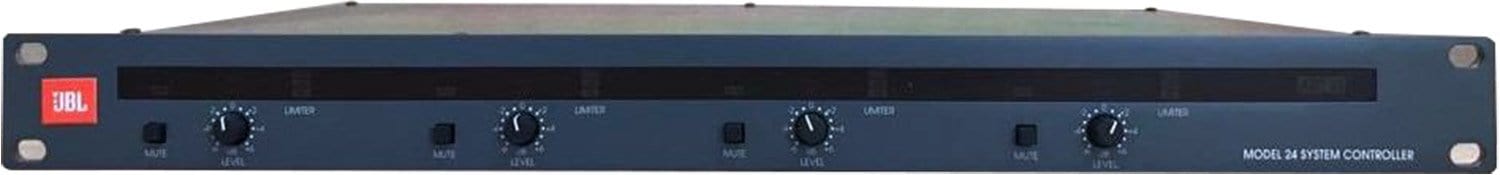

Get ready to elevate your audio experience with the JBL ASC24! This amazing device provides two analog channels of two-way signal processing for Array Series loudspeakers, delivering outstanding sonic quality like never before. Here's why you need it:
- • Exceptional Signal Processing: With 24dB per octave Linkwitz-Riley type crossover filters, phase compensation, equalization, and limiting for each output, the ASC24 ensures a smooth amplitude response and maximum safe dynamic range.
- • Low Noise Performance: Using low noise components in the active signal path, this processor guarantees quiet operation for any application.
- • User-Friendly Controls: The front panel features level trim controls and channel mutes for quick and easy adjustment.
The ASC24 is designed to meet the highest standards of audio quality. It has a very low noise floor, a frequency response of 30 Hz to 20 kHz, and a 30Hz high-pass filter to protect against infrasonic damage. The mid-filter type limiting circuitry reduces band spreading and produces a smoother response around the crossover point during limiting. Plus, the limiter is placed in a side-chain to the audio signal, removing it from the direct audio circuit during lower operational levels.
Features:
- Two-Channel Analog Controller: Configured for Array Series Loudspeakers
- Complete Signal Processing:
- Crossover Filters
- Phase Compensation
- CD Horn Equalization
- Mid-Filter Type Limiters with Switch Selectable Threshold
- Convenient Controls: Level trim controls and channel mutes located on the front panel for quick adjustment.
Specifications:
- Speaker System Compatibility: Array Series: 4890, 4891, 4892, 4892-90, 4894, 4894-90
- Configuration: 2 channels by 2-way outputs
- INPUTS & OUTPUTS:
- Inputs: 2 channels, Max level +20dBu, 10K impedance, Pin 2+
- Outputs: 4 bands, Max level +20dBu into 600 impedance, Pin 2+
- Output Impedance: 47
- CONTROLS & INDICATORS:
- Front Panel Controls: ±6dB trim control on front panel
- Mute for each output band
- Rear Panel Controls: Limiter threshold for each output band, 1dB steps, via rotary switches
- AC voltage selectable
- Displays: Band-type, mute, signal present, limiter function
- PERFORMANCE:
- Dynamic Range: >110dB
- Total Harmonic Distortion: <0.005% typical, 0.1% maximum
- Output Channel Mute: Each output, auto on (4 sec) power up and down
- Nominal Gain: 0dB (Unity Gain)
- Crossover: 24dB/oct Linkwitz-Riley, 1kHz
- Limiters:
- User-adjustable threshold in 1dB steps via switches on back panel (from –10dB to +5dBu).
- Mid-filter type
- Limiter ratio >20:1
- Frequency Response: 30 Hz to 20 kHz
- High-Pass Filter: 30Hz
- PHYSICAL:
- Power Requirements: Selectable 120V or 240V, +10%/–20% 50/60 Hz
- Dimensions (H x W x D): 44.5 x 483 x 292 mm (1.75 x 19 x 11.5 in)
- Weight: 4 kg (8.8 lbs.)
The JBL ASC24 is a must-have for audiophiles looking to enhance their audio setup. Ideal for use in home theaters or professional audio installations, this 2x4-channel crossover and signal processor is designed to work with Array Series loudspeakers. With its compact size of 44.5 x 483 x 292 mm (1.75 x 19 x 11.5 in) and weight of 4 kg (8.8 lbs.), it's easy to install and move around. Get ready to experience audio like never before with the JBL ASC24!
