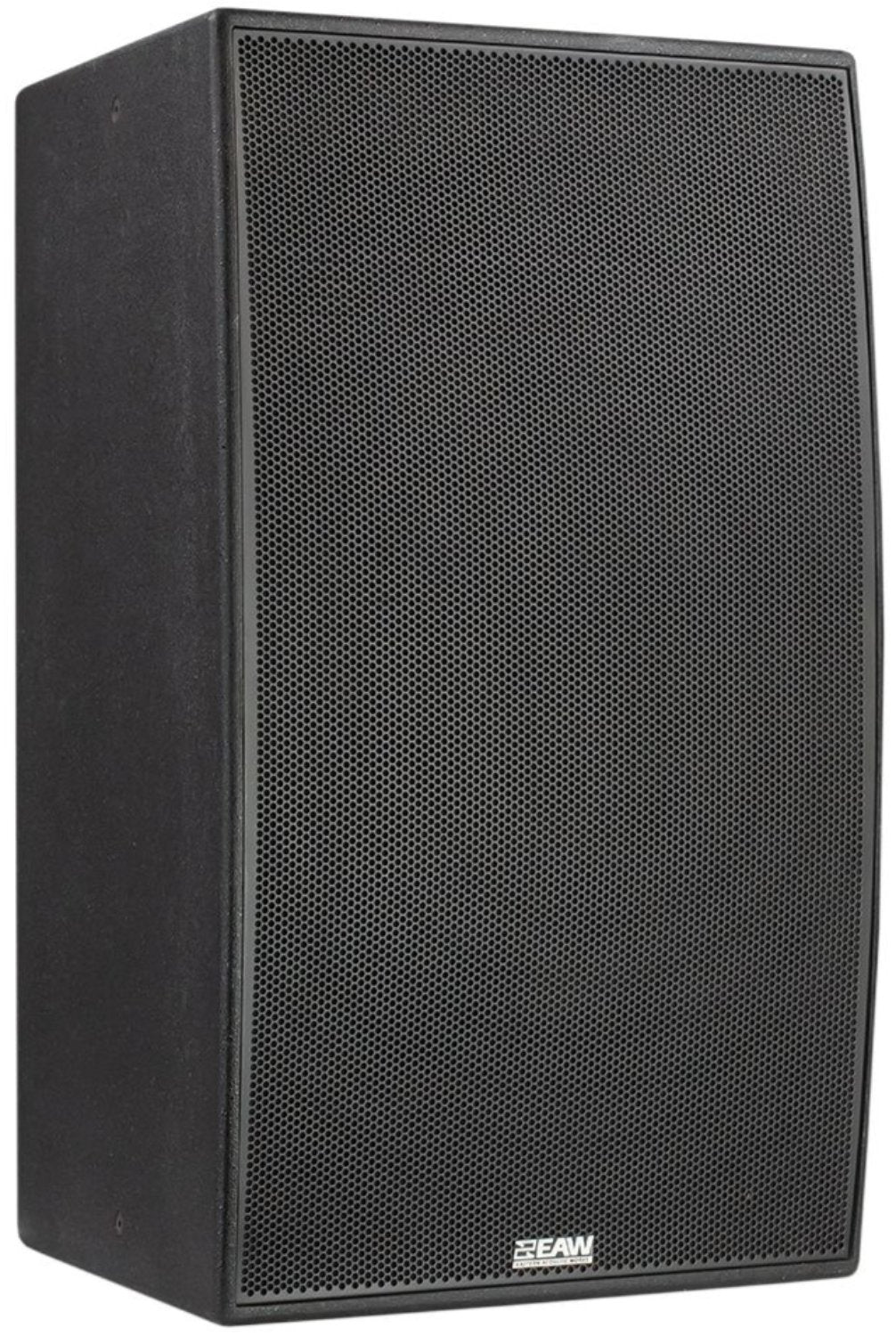

EAW MKD1596 3-Way Full-Range Loudspeaker - Stunning Sound for Every Venue
The MKD installation loudspeaker series is a game-changer! Engineered to rock stadiums and intimate music clubs alike, it delivers high output, precise pattern control, and outstanding fidelity.
Building on EAW's legacy of great installation speakers, the MKD series offers easy installation with its compact Baltic birch enclosure and M10 mounting points. It also has weather protection, custom colors, and a curved front for discreet installs.
Featuring a pair of spaced low frequency transducers around a large format rotatable horn, the MKD series leverages the best of EAW's QX series.
Features:
- • High-output bi-amplified two-way performance for amazing sound
- • High-performance coaxial compression driver with extended bandwidth
- • Precision EAW signature broadband pattern control for perfect coverage
- • Flexible mounting, weather protection, and color options for any setup
Specifications:
- Beamwidth (H x V): 90° x 45°
- Frequency Response: 45Hz – 18kHz
- Max SPL: 145dB
- Operating Mode: Bi-Amp
- Subsystem:
- LF Transducer, Loading: 2 x 15in Cone, 4in Voice Coil
- MF Transducer, Loading: 1 x 2in Exit, 4in Voice Coil, Compression Midrange, Horn Loaded
- HF Transducer, Loading: 1 x 2in Exit, 2.5in Voice Coil, Compression driver, Horn Loaded
- Power Handling:
- LF: 1600W @ 4ohms
- MF/HF: 250W @ 8ohms
- Connections: Terminal block
- Dimensions:
- Height: 37H (935mm)
- Width: 23W (580mm)
- Depth: 24D (600mm)
- Weight: 130lbs (59kg)
This EAW MKD1596 3-Way Full-Range Loudspeaker is perfect for venues like stadiums and music clubs. It's designed to give high-quality sound. The enclosure is compact and made of Baltic birch, with M10 mounting points for easy installation. It also has weather protection and custom color options. The dimensions are 935mm in height, 580mm in width, and 600mm in depth, weighing 59kg. It has a beamwidth of 90° x 45°, frequency response from 45Hz to 18kHz, max SPL of 145dB, and operates in bi-amp mode.
