DiGiCo S31 Rack Pack Bundle: Console, DMI-DANTE2, and A164D-W-L Racks

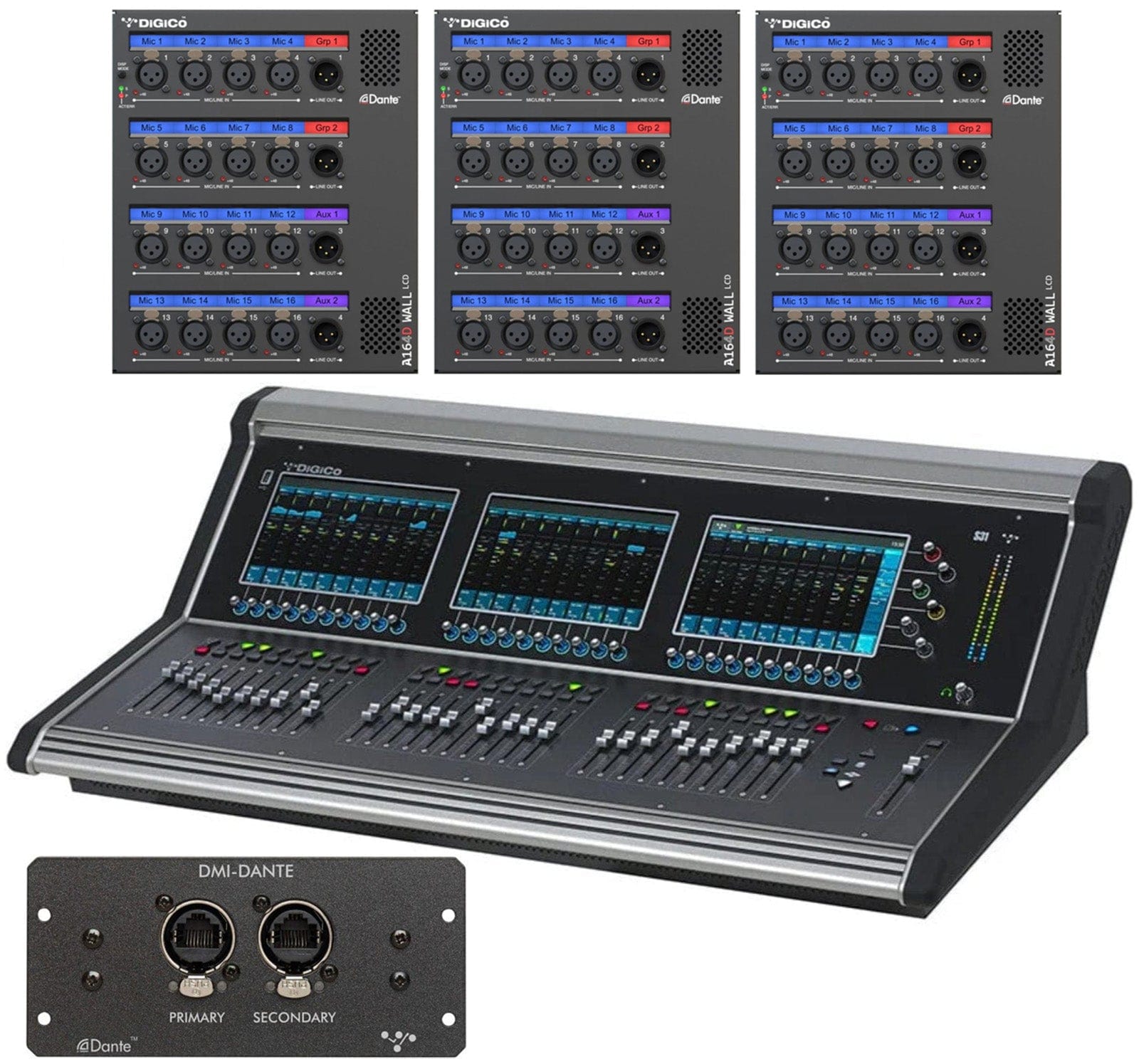

Upgrade your audio setup with the DiGiCo S31 Rack Pack! This comprehensive bundle includes the S31 Digital Console, DMI-DANTE2 module, and three A164D-W-L racks, offering unparalleled sound quality and flexibility.
Unbeatable Sound Quality
The S31 Digital Console delivers flagship audio quality, power, and flexibility in a compact frame. With 48 flex-channels, 16 busses, and 96kHz performance, it's perfect for sound engineers seeking limitless mixing creativity.
Seamless Connectivity
The DMI-DANTE2 module allows for 64 channels in and 64 channels out at both 48kHz and 96kHz, with redundant mode for reliable performance. The A164D-W-L racks provide 16 mic/line and 4 line out expander units with Dante Connectivity.
Intuitive Design
The S31's expanded work surface features three 10-inch multi-touch screens and 31 touch-sensitive moving faders, providing clear visual feedback and control. The A164D-W-L racks offer intelligent labelling and visual feedback for easy setup and operation.
Features:

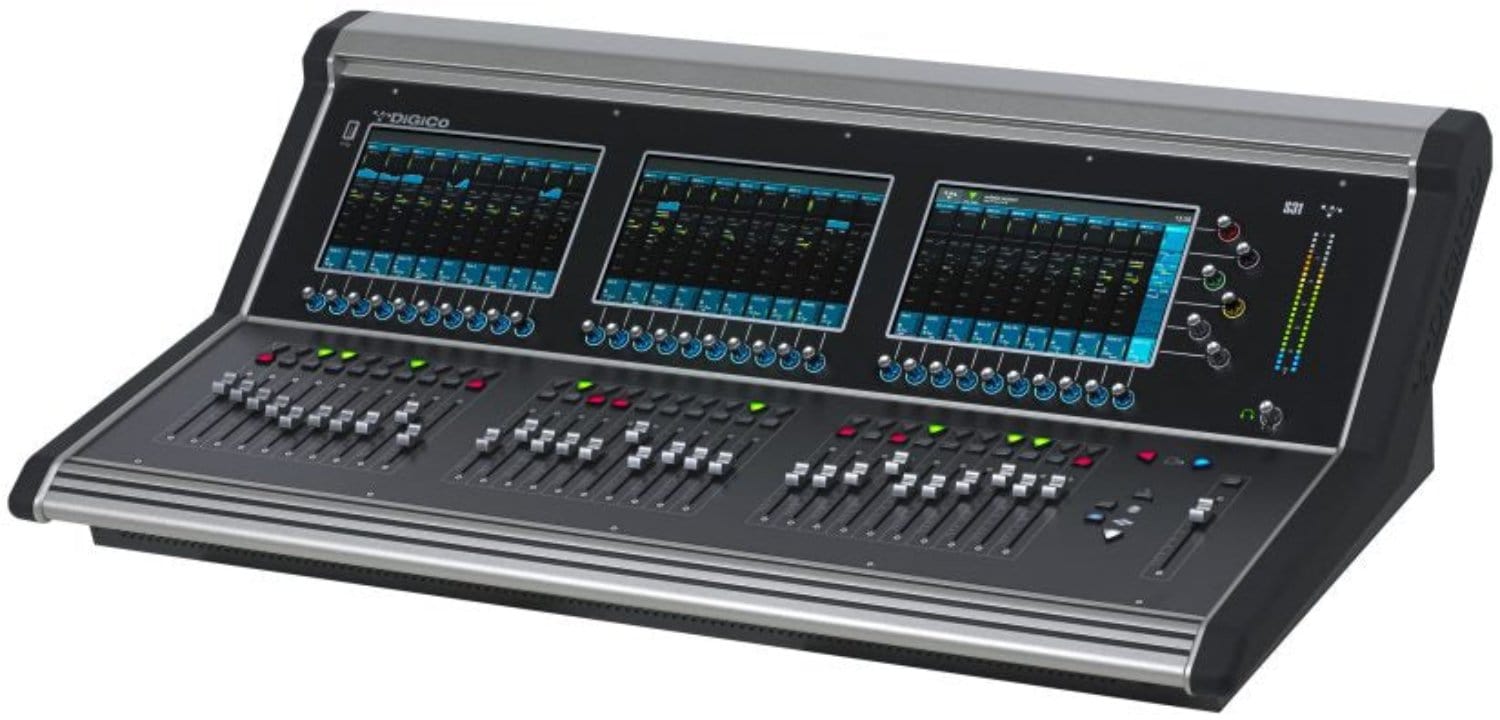

- S31 Digital Console:
- 48 flexi input channels (mono/stereo)
- 16 flexi aux / sub-group busses (mono/stereo)
- 10 x 8 matrix with full processing
- Fully assignable channel layout
- 24 local mic/line inputs and 12 line outputs
- 2 DMI slots to expand the I/O as desired
- Snapshots for seamless changing many parameters at once
- Offline software
- iPad control
- Compatible with the DMI-AMM for automatic mic mixing
- OSC control of snapshots

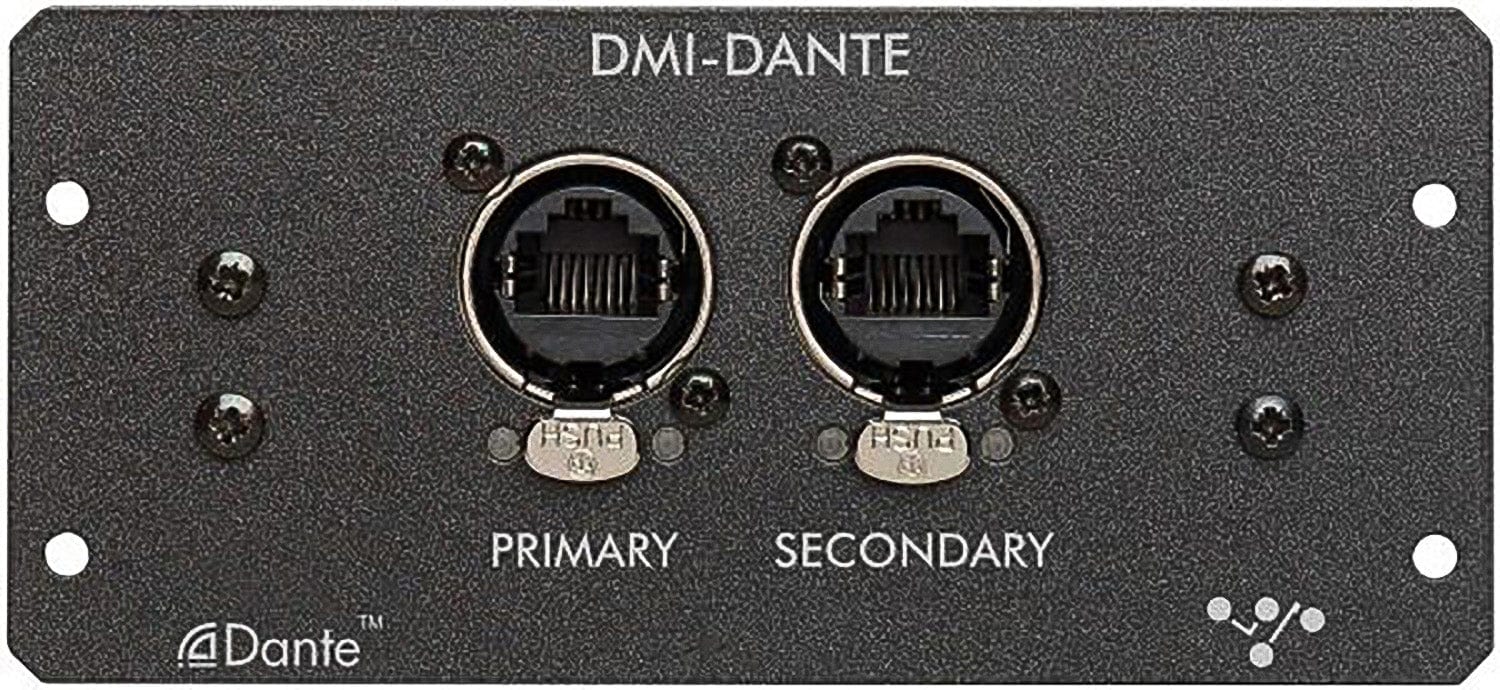

- DMI-DANTE2:
- 2 EtherCON Ports
- 1 RJ45 Port
- Switched mode switches the ports together
- Redundant mode allows the ports to work as a redundant pair
- AES67 Compatible
- Inbuilt SRC between 48kHz and 96kHz
- Compatible with S-Series, Quantum Range, SD12, Orange Box and 4REA4

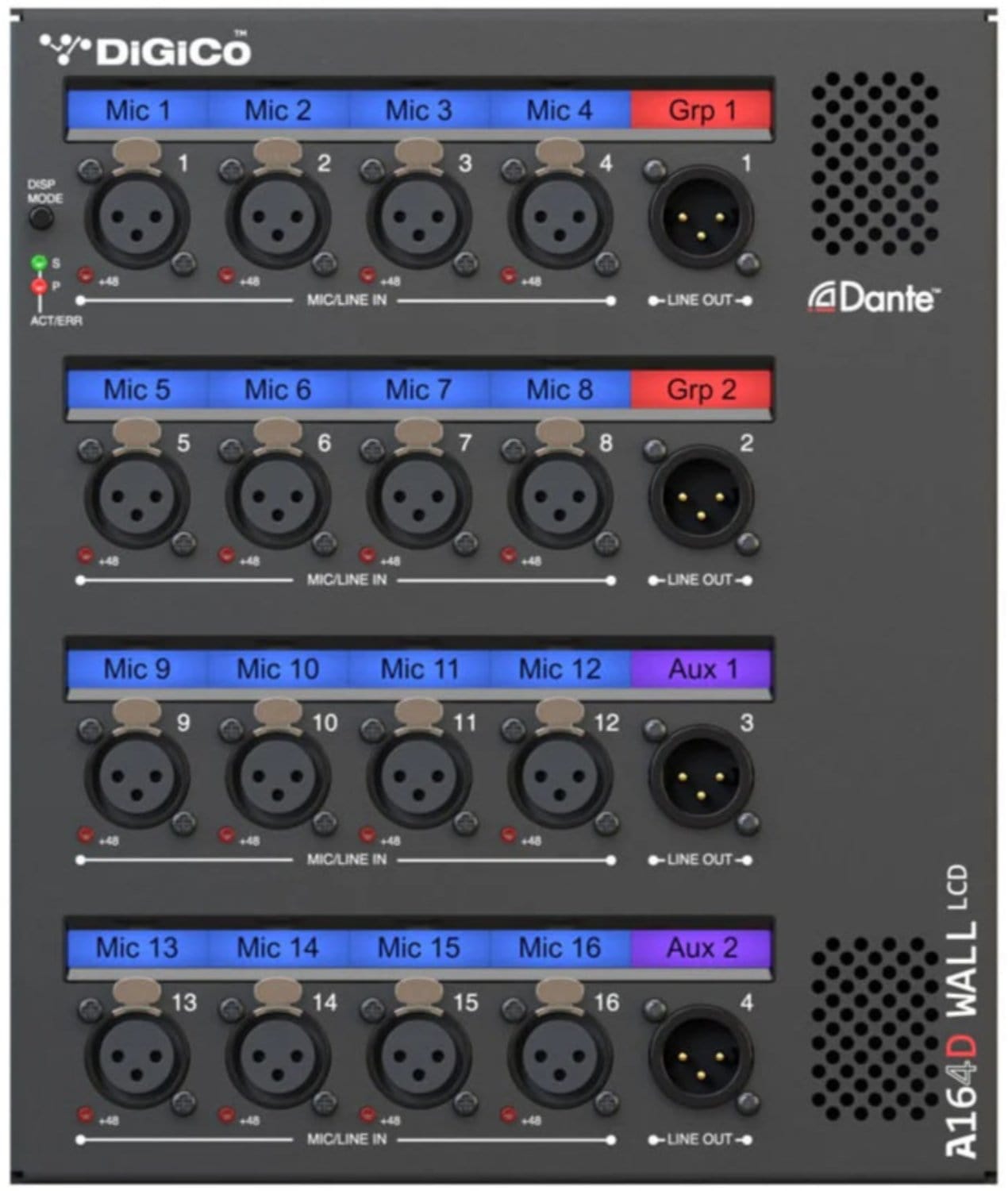

- A164D-W-L Rack:
- Designed for Wall or Floor mounting
- Intelligent labelling and interrogation S-LCD's
- Dante Connectivity
- 16 Mic Preamps on XLR with Phantom Power status LEDs
- 4 x XLR Line Outs
- Customisable and dimmable LCD labels
- AES67 Compatible
Specifications:
- S31 Digital Console:
- 48 x input flex-channels mono/stereo (equivalent of 96 DSP channels)
- 46 busses: 16 x flexi-busses mono/stereo (equivalent of 32 DSP busses), stereo master (2), solo busses (2 stereo, 4 total), and 10 x 8 matrix (8)
- 10 x control groups
- 1 x compressor per channel and buss
- 1 x gate per channel and buss (switchable to ducker, or compressor with side chain access)
- 16 x assignable 32 band graphic EQs
- 8 x FX engines (reverbs, delays, w/modulation and enhancer)
- 21 x assignable DiGiTuBes
- 21 x assignable multiband compressors
- 21 x assignable dynamic EQs
- User definable macros
- An extremely high power headphone amplifier with 1/4 inch and mini jack socket
- 96kHz as standard
- 24 mic/line inputs
- 12 analogue outs
- 2 AES/EBU I/O (mono)
- Word clock I/O
- 1 GPI and 1 GPO
- DVI out (for an external monitor)
- 2 DMI card slots (up to 64 I/O per slot)
- 2 Ethernet connections for networking
- 2 x 24 segment master/solo meters
- Touch sensitive rotaries with integrated switch & HTL
- 3 x multi-touch screens
- 31 x touch sensitive moving faders
- 4 x layers of banks of 10 faders
- Customisable bank and channel layout
- Snapshots
- Integrated USB2 audio I/O interface for recording and playback of up to 48 channels
- DMI-DANTE2:
- Signal processing:
- 64 inputs and 64 outputs at 48kHz and 96kHz
- Inbuilt SRC between 48kHz and 96kHz
- Options:
- Compatible with S-Series, SD12, Quantum Range, Orange Box, 4REA4
- Physical:
- Dimensions: 126.4mm (w) x 176.3mm (d) x 58mm (h)
- Weight: 260g
- Product code: MOD-DMI-DANTE2
- Audio specifications:
- Sample rate: 48kHz or 96kHz
- A164D-W-L Rack:
- Top panel:
- 2 x Locking EtherCON ports
- 1 x IEC C14 or hardwired (optional)
- 1 x Mains input (100-240VAC)
- Front panel:
- 16 x Mic preamps on XLR with phantom power status LEDs
- 4 x XLR line outs
- Sample rate: 48kHz or 96kHz
- Mix/line XLR inputs: Balanced XLR, +48V phantom power
- Mic/line preamp: Fully recallable
- Analogue gain: +5 to +60dB, 1dB steps
- Pad: -20dB active PAD
- Maximum input level: +30dBu (PAD in)
- Input impedance: >4kΩ (pad out), >10kΩ (pad in)
- Mic EIN: -127dB with 150 source
- Analogue XLR outputs: Balanced, relay protected
- Output impedance: <75Ω
- Nominal output: +4dBu = 0dB meter reading
- Maximum output level: +22dBu
- Residual output noise: -93dBu (22Hz-22kHz)
- Operating temperature range: 0°C to 35°C (32°F to 95°F)
- Mains voltage operating range: 100-240V AC, 50/60Hz
- Mains power consumption: 40W max
- DC input: 12V DC, 3A max
The DiGiCo S31 Rack Pack is a must-have for sound engineers and musicians looking to take their audio setup to the next level. This bundle includes the S31 Digital Console, DMI-DANTE2 module, and three A164D-W-L racks, providing everything you need for professional-quality sound. The S31 Digital Console offers 48 flex-channels, 16 busses, and 96kHz performance, while the DMI-DANTE2 module allows for seamless connectivity with other devices. The A164D-W-L racks provide additional input and output options, making it easy to expand your setup. With intuitive controls and a compact design, the DiGiCo S31 Rack Pack is perfect for use in a variety of settings, including live performances, recording studios, and broadcast facilities. The S31 Digital Console measures 19 inches wide, 10.5 inches high, and 20 inches deep, while the DMI-DANTE2 module measures 5.5 inches wide, 7 inches high, and 2.2 inches deep. The A164D-W-L racks measure 19 inches wide, 1.75 inches high, and 17.5 inches deep. The S31 Digital Console weighs 35 pounds, the DMI-DANTE2 module weighs 1 pound, and each A164D-W-L rack weighs 10 pounds.
