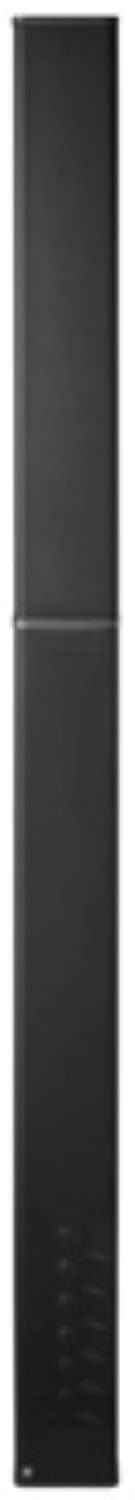

D&B Audiotechnik Z1710.000 24C-E Column Passive Loudspeaker Extension - Black

D&B Audiotechnik Z1710.000 24C-E Column Passive Loudspeaker Extension - Sleek Black

Enhance your sound setup with the 24C-E! • Perfect for extending the 24C column loudspeaker's reach. • Ideal for venues seeking superior audio coverage. • Simple passive connections, just one amplifier channel needed.

Key Features:

• • Six 4” neodymium drivers for extended vertical directivity down to 190 Hz.
• • Unique cardioid setup with damped ports for 18 dB rear broadband attenuation.
• • Extendable rails for easy attachment to the 24C.

Technical Details:

• • Components: 6 x 4'
• • Dispersion: 90° x 20°
• • SPLmax: 128 dB
• • Weight: 7 kg / 15.4 lb
• • Frequency response (-5 dB standard): 110 Hz - 17 kHz
• • Frequency response (-5 dB CUT mode): 150 Hz - 17 kHz
• • Max. sound pressure: 128 dB (in combination with 24C)
• • Cabinets per amplifier channel: 1
• • Configuration: Installation specific cardioid column extender
• • Power handling capacity (RMS/peak 10 ms): 250/1200 W
• • Vertical downtilt of low-mid beam: 5°
• • Vertical adjustment of HF section: 0° - 14°
• • Nominal dispersion angle (h x v): 90° x 20°
• • Components: 6 x 4' driver with neodymium magnet
• • Connections: fixed cable gland with 2-pole Mate-N-Lok mini through 24C
• • Dimensions (H x W x D): 701 x 124.5 x 124 mm / 27.6 x 4.9 x 4.88'

The D&B Audiotechnik Z1710.000 24C-E Column Passive Loudspeaker Extension is perfect for venues looking to enhance their audio setup. It extends the 24C column loudspeaker's coverage. With a weight of 7 kg (15.4 lb) and dimensions of 701 x 124.5 x 124 mm (27.6 x 4.9 x 4.88'), it's easy to install and use. Ideal for event organizers, concert venues, and anyone seeking high-quality sound.
