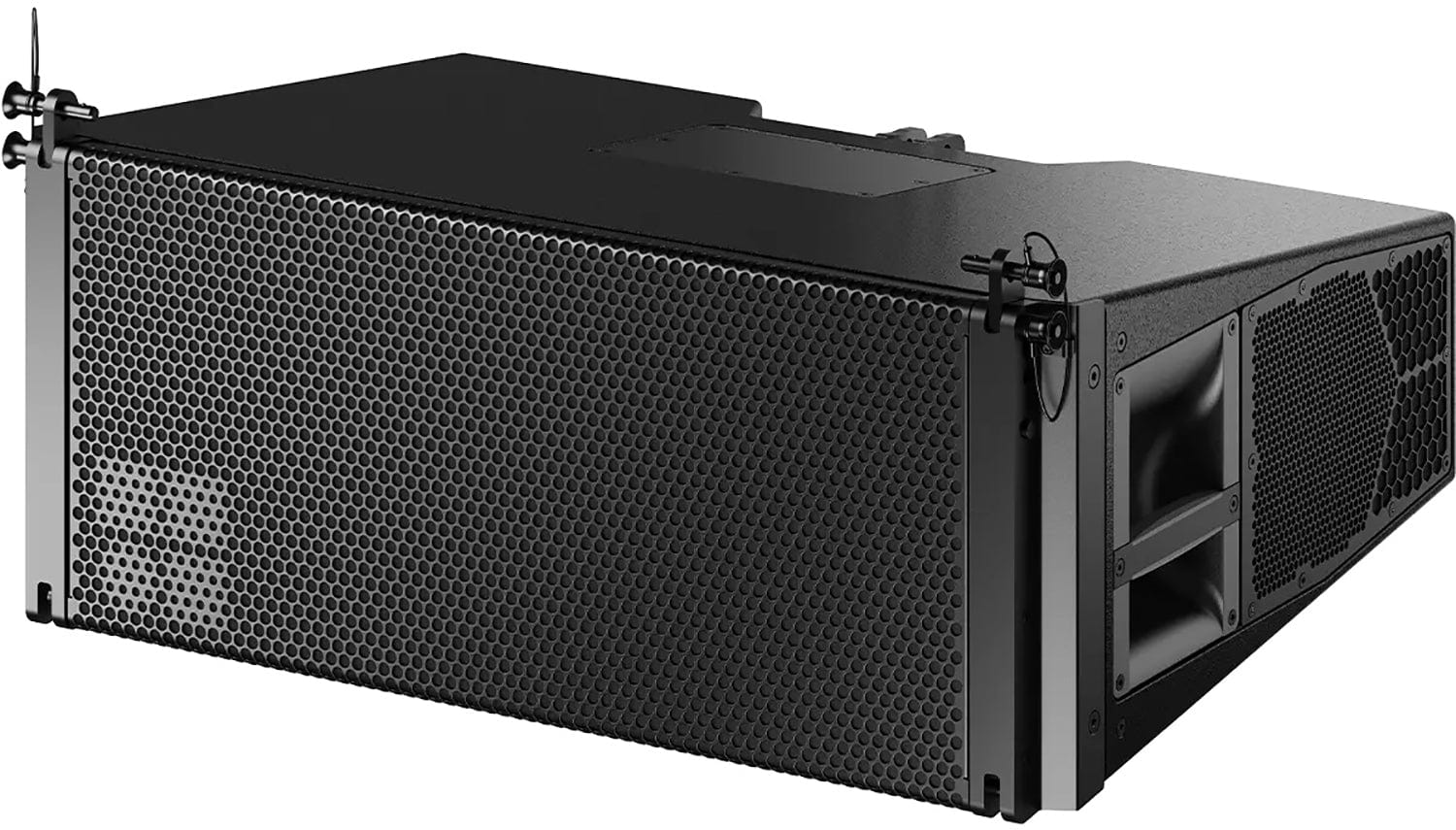

D&B Audiotechnik Z0772.000 XSL12: The Ultimate Loudspeaker for Unbeatable Sound
Get ready to experience unparalleled sound with the XSL12! This mobile-specific line array module is perfect for small to medium-scale sound reinforcement. It can also enhance GSL and KSL Systems as fill and delay. • Small to medium-scale sound reinforcement • Flexible addition to GSL and KSL Systems
With its innovative design, the XSL12 offers seamless directivity from 60 Hz to above 18 kHz. • Seamless directivity from 60 Hz to above 18 kHz
Expand your options with the ability to link two cabinets in Line or Arc mode. • Link two cabinets in Line or Arc mode
The XSL12 is a must-have for any sound professional looking for top-notch performance and versatility.
The cabinet enclosure is made from injection molded PC-ABS plastic, ensuring durability. It has an impact and weather protected 2K finish, making it suitable for various environments. The front and side panels feature rigid metal grills for protection, while the acoustically transparent and water repellent fabric ensures optimal sound quality. Each side panel has a recessed handle, and there are two additional handles at the rear for easy transportation.
Amplifiers
The following amplifiers can be used to drive the XSL12.
Technical Data
- System Data -
- Max. sound pressure[1] with D40/D80/40D - 140 dB
- Frequency response (-5 dB standard) - 60 Hz - 18 kHz
- Frequency response (-5 dB CUT mode) - 90 Hz - 18 kHz
- Cabinets per D40/D80/40D (Array Processing) - 2
- Cabinets per D40/D80/40D (Line or Arc mode) - 4
- Loudspeaker data -
- Nominal impedance front LF - 8 ohms
- Nominal impedance side LF/MF/HF - 8 ohms
- Power handling capacity front LF (RMS/peak 10 ms) - 400/1200 W
- Power handling capacity side LF/MF/HF (RMS/peak 10 ms) - 300/850 W
- Nominal dispersion angle (horizontal) - 120°
- Splay angle settings - 0 ¡ 14° (1° increment)
- Components -
- 2 x 8' front LF driver
- 2 x 6.5' side LF driver
- 1 x 6.5' MF driver
- 2 x 1' exit compression driver with 2' voice coil
- Passive crossover network
- Connections - 2 x NLT4 F/M
- Dimensions / weight
- Dimensions (H x W x D) -
- 283 x 700 x 507 mm
- 11.1 x 27.5 x 20'
- Weight -
[1] 1 m, free field, SPL max peak, test signal: pink noise with crest factor 4, one speaker driven
The D&B Audiotechnik Z0772.000 XSL12 loudspeaker is designed for mobile use and is perfect for small to medium-scale sound reinforcement. It can also be used to supplement GSL and KSL Systems as fill and delay. The loudspeaker has a cabinet enclosure made from injection molded PC-ABS plastic with an impact and weather protected 2K finish. It has a nominal impedance of 8 ohms for the front LF and side LF/MF/HF, and a power handling capacity of 400/1200 W for the front LF and 300/850 W for the side LF/MF/HF. The nominal dispersion angle in the horizontal plane is 120°, and the splay angle can be set from 0° to 14° in 1° increments. The dimensions of the loudspeaker are 283 x 700 x 507 mm (11.1 x 27.5 x 20'), and it weighs 39 kg (86 lb). It is driven actively by two channels of an appropriate d&b amplifier, which provides dedicated processing functions for the front LF and passively crossed-over side LF and MF/HF sections. The XSL12 can be linked with other cabinets in Line or Arc mode for more flexibility. It comes with the SL-Series' flying hardware with a patented workflow and integrated tension and compression rigging modes. This loudspeaker is suitable for sound professionals who need high-quality sound reinforcement for various events and venues.
