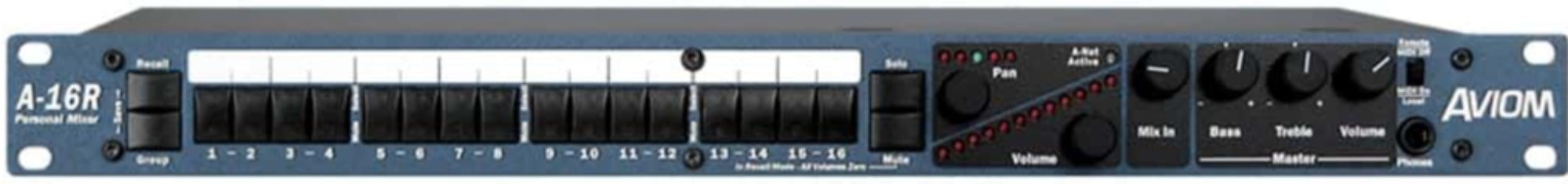

Aviom A-16R: Your Ultimate 16-Channel Stereo Digital Mixer
Take control of your sound with the A-16R Personal Mixer! This remote-controllable 16-channel stereo digital mixer is a game-changer. Whether you're a performer craving independent monitor mix control or an engineer needing to manage monitor mixes in various setups, the A-16R has got you covered.
Ideal for wireless in-ear monitors or floor wedges, it's perfect for live events, conferences, gyms, and auditoriums. With intuitive volume and pan control for 16 channels, master volume, and tone, you'll have the power to shape your sound exactly as you want.
Store up to sixteen preset mixes, each with three subgroups. Solo or mute individual channels, pairs, or groups with ease. And with remote control options via the A-16CS Control Surface or third-party controllers, you can place the mixer in an equipment rack while still having full control.
Features:
- • Remote control for ultimate flexibility
- • 16 channels of intuitive volume and pan control
- • Sixteen user Preset memory locations
Specifications:
- • Dimensions: 19” (482.6 mm) x 6.7” (170.2 mm), 1U high
- • Weight: 3.4 lbs (1.54 kg)
- • Power Supply: External, DC, universal switching type
The Aviom A-16R is a 16-channel stereo digital mixer. It's great for individual performers who want independent control of their monitor mixes, especially those using wireless in-ear monitors or floor wedges. Engineers also find it useful when they need control over monitor mixes. In commercial settings, it can be used in conferencing, room combining, gymnasiums, and auditoriums. It offers intuitive control over volume and pan for 16 channels, master volume, and tone. Each unit can store up to sixteen preset mixes with three subgroups per preset. Channels, channel pairs, or groups can be soloed or muted. It can be remotely controlled from the optional A-16CS Control Surface or select third-party controllers. The A-16R has balanced line-level outputs on XLR or 1/4” TRS jacks, insert send and return points via balanced 1/4” TRS jacks, MIDI In, Out, and Thru jacks, and an auxiliary stereo mix input. Audio is provided via Aviom's Pro16 A-Net protocol on a Cat-5e cable. It can be powered locally with an external DC power supply or remotely over the Cat-5e cable using an A-Net Distributor. The mixer can be used with other Pro16 devices. The A-16R is 19” (482.6 mm) x 6.7” (170.2 mm), 1U high and weighs 3.4 lbs (1.54 kg). All Aviom products are designed and manufactured in the USA.
