Audio-Technica ATW-3211N/831 3000 Network Lavalier System

Audio-Technica ATW-3211N/831 3000 Lavalier System 470-530 (With Microphone)

• Network-enabled systems with network monitoring and control via Audio-Technica's Wireless Manager software. Each network-enabled receiver comes with an AT8631 joining plate.

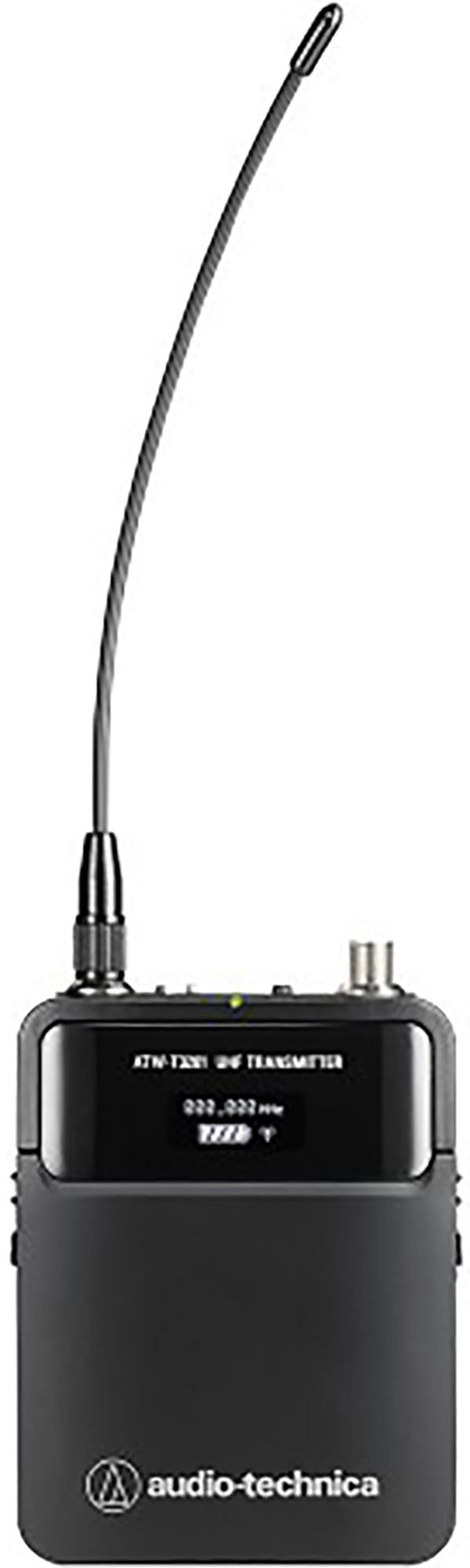

• ATW-R3210N network-enabled receiver and ATW-T3201 body-pack transmitter with AT831cH cardioid condenser lavalier microphone.

• Wide 60 MHz UHF tuning bandwidth for maximum versatility in a congested RF environment. Unique multifunction button for quick frequency switching in case of interference.

Features:

• • True Diversity operation for fewer dropouts. Auto Squelch feature for optimal range and minimal interference.
• • Frequency scan and IR sync for easy setup. Dual-mode receiver display for standard or performance view.
• • Transmitters and receivers have OLED screens for clear readout. Handheld transmitter has low handling noise and interchangeable microphone capsules.
• • New rugged cH-style connector on body-pack transmitter. Tactile mute toggle switch for physical mute confirmation.
• • Charging terminals work with smart charging docks. Antenna power for powered antennas. Ground-lift switch for hum elimination.
• • Balanced and unbalanced audio output jacks.

Specifications:

• • Operating Frequencies: Band DE2: 470.125 to 529.975 MHz (2395 frequencies). Minimum Frequency Step: 25 kHz. Modulation Mode: FM.
• • Maximum Deviation: ATW-T3201: ±38 kHz (THD:10%); ATW-T3202: ±36 kHz (THD:10%).
• • Dynamic Range: ATW-T3201 Mic input: > 115 dB (A-weighted), typical; Inst input: > 112dB (A-weighted), typical; ATW-T3202: > 115 dB (A-weighted), typical.
• • Total Harmonic Distortion: <1.0% (at 1 kHz, ±17.5 kHz deviation). Operating Range: 100 m (328') in open range.
• • Operating Temperature Range: -5° C to +45° C (23° F to 113° F).

This Audio-Technica ATW-3211N/831 3000 Network Lavalier System is perfect for presenters, speakers, and performers who need crystal-clear audio on the go. In a live event or presentation setting, it provides reliable wireless connectivity. The system includes an ATW-R3210N network-enabled receiver and an ATW-T3201 body-pack transmitter with an AT831cH cardioid condenser lavalier microphone. It has a 60 MHz UHF tuning bandwidth for great versatility in a crowded RF environment. The unique multifunction button allows for quick frequency switching if interference occurs. It offers features like True Diversity operation for fewer dropouts, an Auto Squelch feature for optimal range, and Frequency scan and IR sync for easy setup. The operating frequencies are in the DE2 band from 470.125 to 529.975 MHz with a minimum frequency step of 25 kHz and FM modulation. The maximum deviation and dynamic range vary by model. The total harmonic distortion is less than 1.0% at specific conditions. It has an operating range of 100 m in an open range environment and an operating temperature range from -5° C to +45° C.
